Precision Machined Adapters

SS 304 High-Pressure Compressor Adapter (BSP)

High-pressure stainless steel BSP Male-Female adapters engineered specifically for demanding compressor, hydraulic, and pneumatic systems. Precision CNC turned from premium SS 304 to a strict ±0.005mm tolerance, ensuring a secure, leak-proof fit. Electropolished for maximum corrosion resistance. Manufactured in Mumbai, exported globally.

BSP Male/Female Threads
High-Pressure Rated
Leak-Proof Design
Corrosion Resistant SS 304
±0.005mm Precision Tolerance
Electropolished Finish
Request Quote Call Now
50+ Years Experience ISO Quality Standards Global Export
SS 304 High-Pressure Compressor Adapter BSP Stainless Steel BSP Male Female Thread Electropolished High Pressure Pneumatic Fitting SS 304 Adapter Quality Inspection

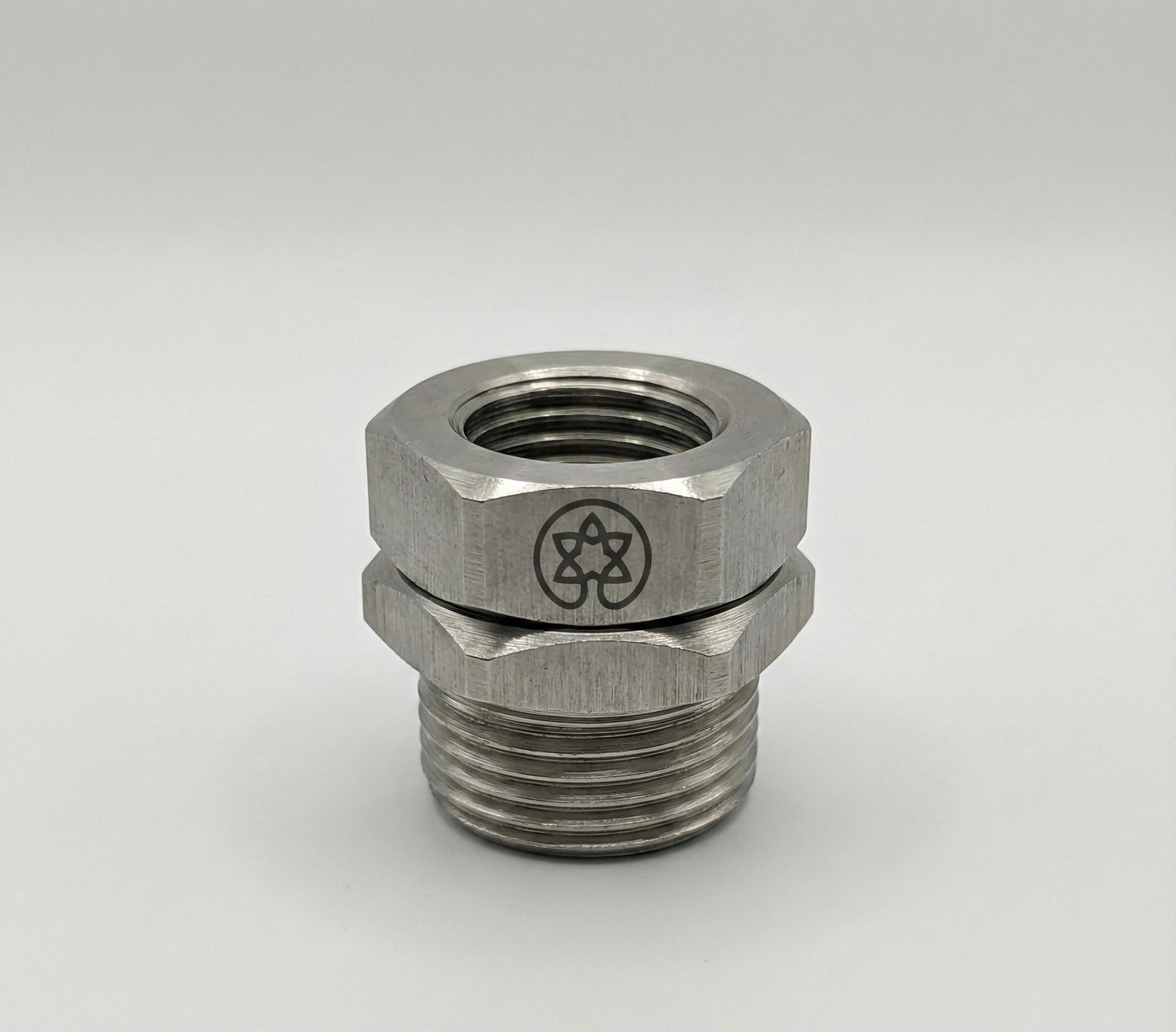

SS 304 Adapter
SS 304 Adapter

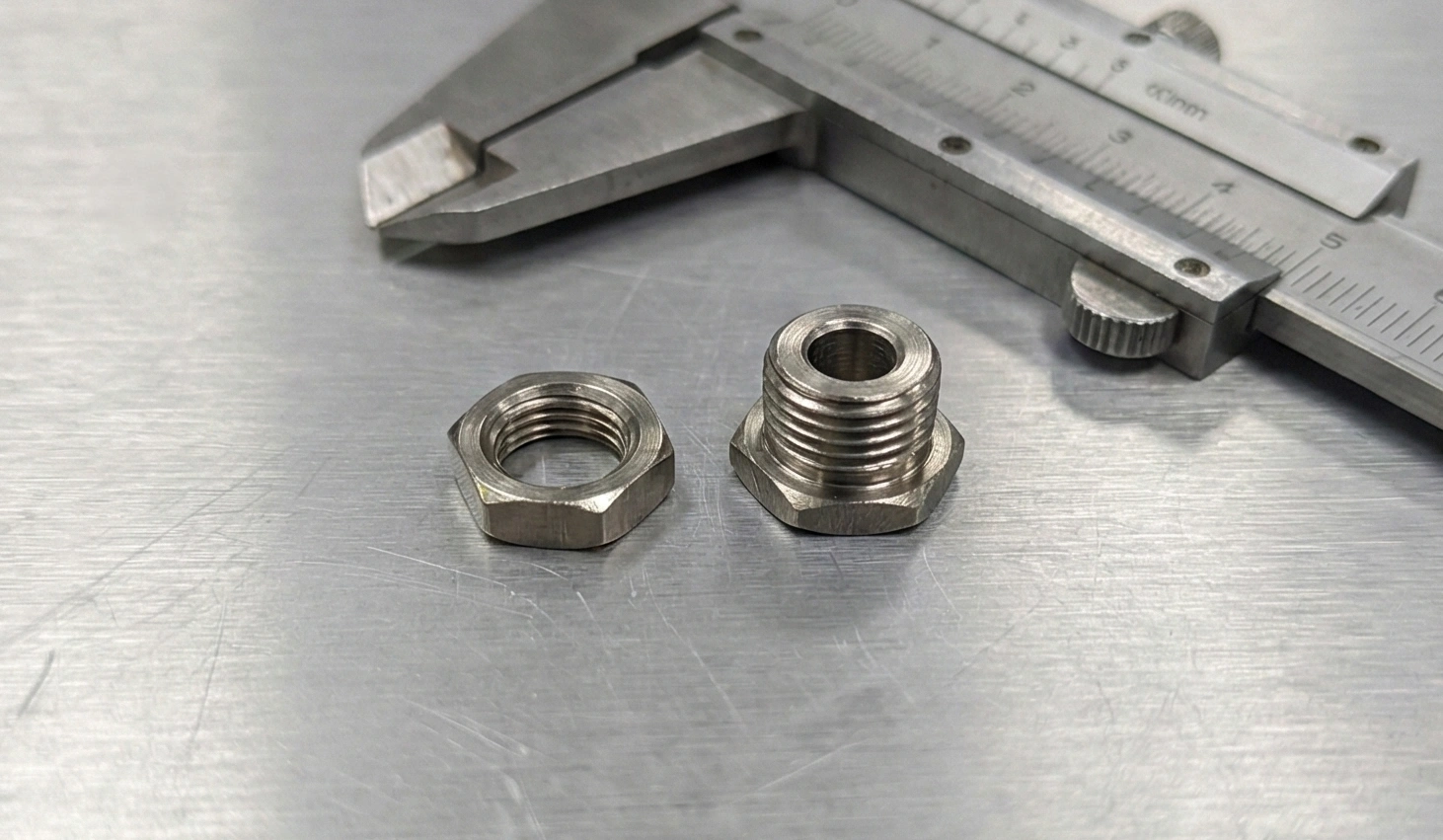

BSP Threads
BSP Threads
Side Profile
Side Profile

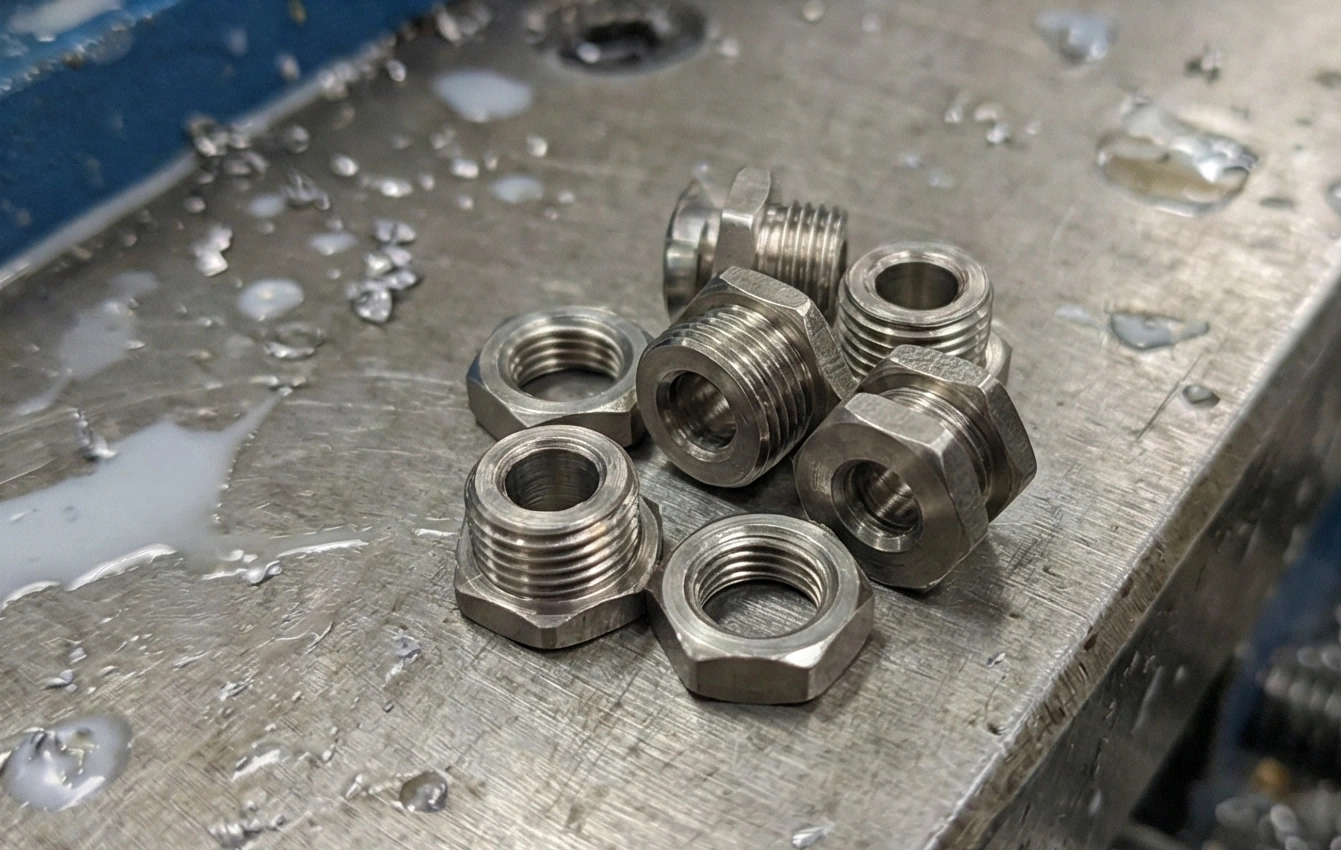

Electropolished
Finish
50+
Years of Experience
±0.005
mm Thread Tolerance
100%
Leak-Free Assured
40+
Countries Exported To
Product Overview

High-Performance SS 304 Compressor Adapters

SS 304 High-Pressure BSP Adapters are critical fluid and gas transfer components designed to connect pneumatic tools, compressors, and hydraulic lines safely. The BSP (British Standard Pipe) thread profile provides an exceptionally tight mechanical seal, while the Male-Female configuration allows for versatile pipe diameter reduction or line extension without compromising system pressure.

At OM Engineering Works, we manufacture these stainless steel adapters to aerospace-level tolerances. Utilizing advanced CNC turning and Traub machining, we hold a strict ±0.005mm tolerance on thread flanks and bore concentricity. This extreme precision ensures that our adapters can withstand the severe vibration and high PSI demands of industrial compressors without backing out or leaking.

Operating from our advanced facility in Bhayandar, Mumbai, we machine these components from solid SS 304 hex or round bar stock. Stainless steel is chosen for its superior burst strength and immunity to moisture-induced rust—crucial for compressed air systems which naturally generate internal condensation.

Key Features of Our SS 304 Adapters:

  • Precision BSP Threading: Cut to exact BS EN 10226 standards, ensuring perfect mating with European and international pneumatic equipment.
  • Premium SS 304 Grade: Offers exceptional tensile strength and rust resistance, outperforming standard brass or carbon steel in moist compressed air environments.
  • Male-Female Versatility: Ideal for adapting port sizes, acting as gauge adapters, or serving as heavy-duty extension pieces.
  • Electropolished Finish: A specialized surface treatment that removes micro-burrs and enriches the chromium layer, maximizing corrosion resistance and flow efficiency.
  • Vibration & Shock Resistant: Designed with robust wall thicknesses to handle the cyclical hammering and pulsation of reciprocating air compressors.

Why Choose OM Engineering Works?

  • Uncompromising ±0.005mm Tolerance: Perfect thread engagement eliminates cross-threading and prevents micro-leaks under high pressure.
  • Material Traceability: All SS 304 stock comes with Mill Test Certificates (MTC) to guarantee chemical composition and structural integrity.
  • Global Reach: We regularly export high-volume batches of precision stainless fittings to Europe, the Middle East, and North America.
  • Scalable Production: From small custom prototyping batches to mass production runs, we meet your supply chain requirements seamlessly.
Technical Details

SS 304 BSP Adapter — Specifications

Dimensional & Threading Specifications

Thread Standard BSP (British Standard Pipe) - BSPP (Parallel) or BSPT (Tapered)
Configuration Male to Female (M-F), Male to Male (M-M), Female to Female (F-F)
Available Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4" BSP (Custom on request)
Dimensional Tolerance ±0.005mm (Critical threads and mating surfaces)
Manufacturing Process CNC Turning, Precision Threading, CNC Milling (Hex Flats)
Application Range Air Compressors, Pneumatic Tools, High-Pressure Hydraulics
Pressure Rating Up to 10,000 PSI (Depending on wall thickness and size)
Quality Standard First Article Inspection, Digital Thread Profile Checking

Material & Surface Specifications

Primary Material Stainless Steel 304 (SS 304 / 1.4301)
Alternative Materials SS 316, SS 316L, Duplex Stainless Steel (Upon request)
Standard Finish Electropolished (Smooth, passive, highly corrosion-resistant)
Alternative Finishes Passivated, Natural Machined (Ultrasonic Cleaned)
Corrosion Resistance Excellent resistance to condensation, chemicals, and industrial atmospheres
Operating Temperature -196°C to +800°C (Extreme cryogenic to high heat capability)
Compliance RoHS and REACH Compliant
Certifications EN 10204 3.1 Material Test Certificates (MTC) provided
Our Expertise

How We Manufacture Precision SS Adapters

01
Premium Raw Material Verification

We source high-grade SS 304 solid hex or round bar stock from certified mills. Every batch is verified against its Material Test Certificate (MTC) to ensure the exact chromium and nickel content required for optimal strength and machinability before hitting the shop floor.

02
High-Precision CNC Turning

The stainless steel bars are processed in our advanced CNC turning centers. The robust nature of SS 304 requires specialized carbide tooling and rigid machine setups. We turn the outer diameters, internal bores, and tapers to incredibly tight ±0.005mm tolerances to guarantee concentricity.

03
BSP Thread Generation

Cutting threads into stainless steel demands expertise to prevent tearing or work-hardening. We use precision CNC single-point threading or high-grade threading dies to create the BSP Male and Female profiles. Clean, accurate threads are essential for holding high pneumatic pressure.

04
Milling Wrench Flats

For round bar stock, the adapters are transferred to a CNC milling station where precision hex flats are machined. These flats allow technicians to apply heavy torque during installation without rounding off or damaging the fitting body.

05
Electropolishing & Passivation

To maximize corrosion resistance, the SS 304 adapters undergo electropolishing. This electrochemical process removes microscopic surface burrs and draws chromium to the surface, creating a highly passive, mirror-like finish that repels rust and contaminants.

06
Rigorous Quality Inspection

Every batch is inspected using calibrated Go/No-Go BSP thread gauges. Dimensional checks confirm the ±0.005mm tolerances. Adapters are then securely packed in protective export-grade packaging to prevent thread damage during global transit.

Machines & Equipment

  • Advanced CNC Turning Centers
  • Traub Automats (for high-volume runs)
  • CNC Vertical Milling Machines
  • Carbide Threading Tooling
  • Electropolishing & Passivation Baths

Quality Control

  • Calibrated BSP Thread Gauges (Ring & Plug)
  • Digital Micrometers (0.001mm resolution)
  • First Article Inspection (FAI)
  • Optical Profile Projectors
  • EN 10204 3.1 MTC Documentation
Material Options

Stainless Steel Grades for Adapters

Stainless Steel 304 (SS 304)

Properties: The most versatile and widely used austenitic stainless steel. Contains 18% chromium and 8% nickel. It offers excellent forming and welding characteristics, superb toughness even down to cryogenic temperatures, and outstanding resistance to oxidation and corrosion.

Best For: Standard compressor adapters, pneumatic fittings, general hydraulic systems, and components exposed to moisture and varied weather conditions.

Standards:

UNS S30400 EN 1.4301 AISI 304

Stainless Steel 316 / 316L (On Request)

Properties: Similar to 304 but with the addition of molybdenum. This significantly increases resistance to pitting and crevice corrosion in chloride environments (like sea water or de-icing salts). 316L is the low-carbon version, preventing carbide precipitation during welding.

Best For: Marine applications, chemical processing plants, offshore oil rigs, and environments exposed to high chloride levels or harsh industrial chemicals.

Standards:

UNS S31600 / S31603 EN 1.4401 / 1.4404
Applications

Industries Using Our SS 304 BSP Adapters

Industrial Pneumatics

Crucial connections for heavy-duty air compressors, receiver tanks, and automated factory pneumatic lines facing constant vibration.

High-Pressure Hydraulics

Adapting ports on hydraulic pumps, manifolds, and cylinders where burst strength and leak-proof sealing are non-negotiable.

Chemical & Pharma

Stainless steel construction ensures fluid purity and resists degradation from aggressive cleaning chemicals and solvents.

Marine & Offshore

Providing rust-free performance in salt-laden environments for deck machinery, instrumentation, and compressed air starting systems.

Product Comparison

OM Engineering SS 304 Adapters vs Market Standards

Feature / Capability OM Engineering Works Standard Cast/Imported Fitting
Manufacturing Method CNC Machined from Solid Bar Stock Cast (prone to porosity/cracking)
Dimensional Tolerance ±0.005mm ±0.05mm or higher
Material Verification 100% Verified SS 304 with MTC Uncertified / Mixed alloys
Surface Finish Electropolished / Passivated Rough machined, prone to rust spots
Pressure Capability High-Pressure / High-Vibration Rated Low pressure commercial use only
Common Questions

SS 304 Compressor Adapters — FAQs

BSP stands for British Standard Pipe. It is a family of thread types used internationally for interconnecting and sealing pipes and fittings. In pneumatic and compressor systems, BSP threads (especially BSPT - tapered) provide an excellent, mechanically secure seal against high-pressure air and gases. It is widely adopted across Europe, Asia, and Australia as the standard connection for fluid power.

While brass is excellent for many applications, SS 304 is far superior when it comes to raw strength, vibration resistance, and longevity in harsh environments. Compressors naturally create heat and condensation (moisture) inside the lines. SS 304 is completely immune to this internal rusting. Furthermore, in high-pressure industrial systems or areas exposed to chemical washdowns, stainless steel will not degrade or crack under stress like softer metals might.

Electropolishing is an electrochemical process that removes a microscopic layer of material from the stainless steel surface. This does two things: First, it removes any microscopic burrs left from machining, creating an ultra-smooth surface that improves fluid/air flow. Second, it enriches the chromium concentration on the surface, significantly boosting the adapter's natural resistance to rust and corrosion.

If the adapter uses BSPT (tapered) threads, a thread sealant like PTFE tape or liquid pipe dope is highly recommended to fill microscopic voids and ensure a 100% leak-proof seal. If using BSPP (parallel) threads, sealing is typically achieved using an O-ring or a bonded seal washer at the base of the thread. We manufacture both styles based on your requirements.

Yes. As an ISO-compliant manufacturer handling global exports, we provide EN 10204 3.1 Material Test Certificates (MTC) with every SS 304 batch. This document traces the material back to the mill and proves the chemical composition and mechanical properties of the steel, ensuring you receive genuine SS 304.
Related Capabilities

Explore Our Other Precision CNC Manufacturing Services

Precision Turned Components

CNC turned stainless steel, brass, alloy steel precision parts for automotive, hydraulic, and industrial OEM applications.

Traub Machining Job Work

High-volume Traub machine components with tight tolerances and repeatable batch production capability.

Rapid Prototyping & Small Batch CNC

Low MOQ prototype and development batch machining for new product tooling and validation.

Need Custom SS 304 Adapters for Your Systems?

Share your BSP size requirements or custom drawings for a rapid quote. We offer CNC machining for extreme ±0.005mm tolerance precision and volume scaling. MTC provided. Mumbai-based manufacturing, globally exported.

Request a Quote WhatsApp Quote +91 9324078101
