Industrial Conveyor Hardware

Heavy Duty MS Conveyor Guide Roller Manufacturer

Robust Mild Steel (MS) Guided Rollers engineered to withstand heavy dynamic loads and harsh industrial environments. Featuring precision-machined bearing surfaces held to a strict ±0.02mm tolerance and heat-treated for maximum wear resistance. Designed for smooth, long-lasting rotation in automated material handling and conveyor systems. Exporting globally from Mumbai.

Heavy Load Capacity
Wear Resistant Surface
Smooth Rotation
Industrial Grade Quality
±0.02mm Precision Bearing Seats
Global Export Certified
Request Quote Call Now
50+ Years Legacy ISO Quality Standards Global B2B Export

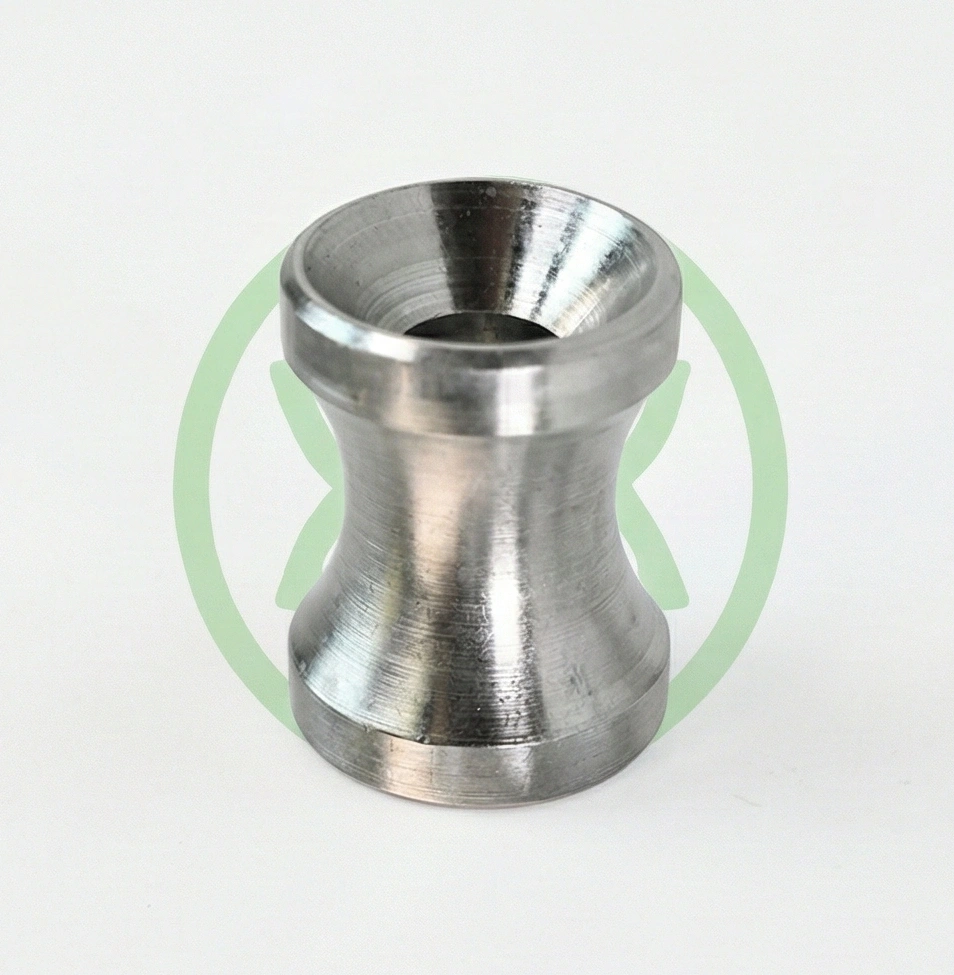

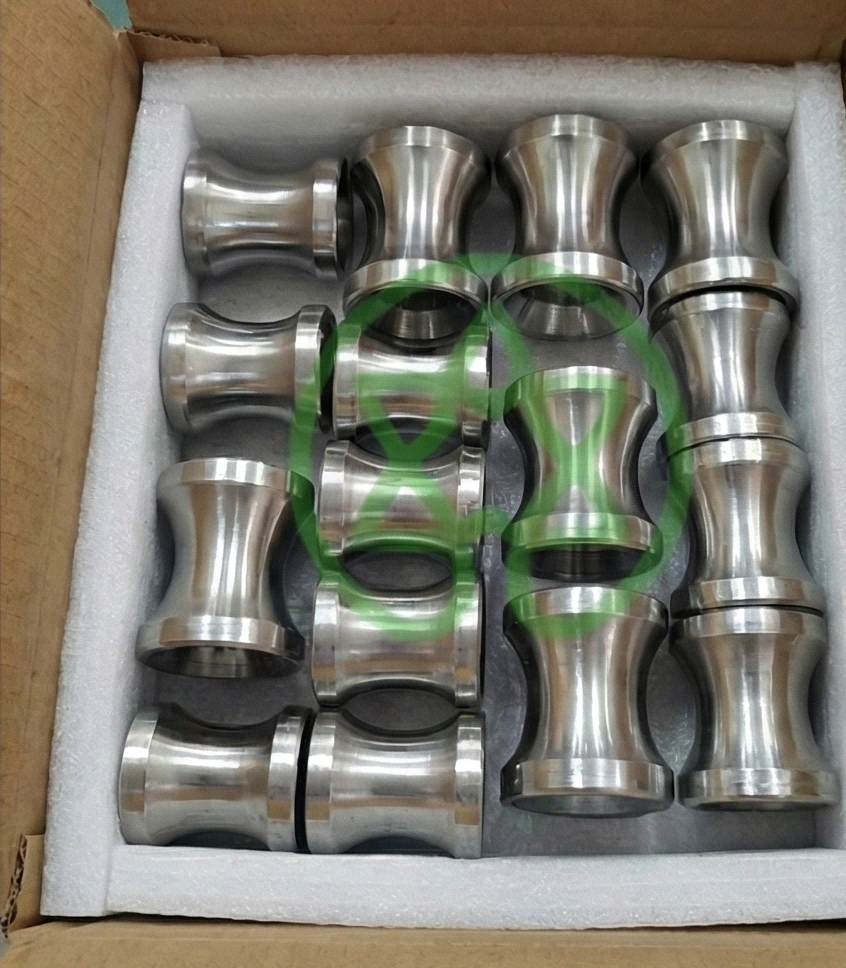

Heavy Duty MS Guided Roller Conveyor Precision Machined Bearing Surface Heat Treated Mild Steel Roller Industrial Conveyor Roller Inspection
MS Roller
MS Roller
Bearing Seat
Bearing Seat
Side Profile
Side Profile
Heat Treated
Finish
1975
Established
±0.02
mm Bearing Tolerance
100%
Load Tested
40+
Countries Exported To
Product Overview

High-Capacity MS Guided Conveyor Rollers

Guided rollers are the backbone of industrial material handling. Operating continuously in heavy-duty conveyor systems, assembly lines, and sorting facilities, these components must support massive weight capacities without failing, seizing, or wearing down unevenly.

At OM Engineering Works, we utilize our extensive Traub machining job work and precision CNC turning capabilities to manufacture these critical components. By machining the inner and outer diameters to a strict ±0.02mm tolerance, we guarantee that press-fit bearings seat perfectly. This eliminates micro-vibrations, reduces operational noise, and exponentially extends the lifespan of both the roller and the conveyor belt.

As a third-generation engineering company based in Bhayandar, Mumbai, we understand that international OEMs require scalable reliability. To combat the constant abrasive friction inherent in logistics and mining conveyors, our Mild Steel (MS) rollers undergo specialized surface heat treatments to harden the exterior while retaining a tough, impact-resistant inner core.

Key Features of Our MS Guided Rollers:

  • Optimized Load Distribution: Engineered with appropriate wall thicknesses to prevent bowing or deflection under heavy centralized loads.
  • Precision Bearing Housings: Internally bored to exact ISO tolerances to ensure bearings operate smoothly without premature failure.
  • Wear-Resistant Surface Treatment: Case hardening and specialized anti-rust treatments protect the roller against abrasive environments and moisture.
  • Dynamic Balance: Concentricity is tightly controlled during the turning process to prevent wobbling at high operational speeds.

Why Source from OM Engineering Works?

  • 50+ Years of Manufacturing Excellence: Read about our legacy since 1975 on our About Us page—we bring decades of metallurgical and machining expertise to every component.
  • Advanced Infrastructure: Manufactured in our high-capacity Mumbai facility, ensuring we can handle massive export volumes without compromising on strict QA protocols.
  • Global Reach: Tailored for international B2B clients looking for superior Indian manufacturing to rival European precision at competitive rates.
Technical Details

Guided Roller — Specifications

Dimensional & Machining Specs

Outer Diameter (OD) Available from 25mm to 150mm (Custom dimensions available)
Lengths Available 50mm up to 1000mm
Bearing Seat Tolerance ±0.02mm (Ensuring perfect H7/g6 bearing fits)
Concentricity (Runout) < 0.05mm TIR for smooth high-speed rotation
Manufacturing Process High-Speed CNC Turning, Traub Machining, Internal Boring, Grinding
Shaft Compatibility Machined to accommodate standard industrial steel shafts
Load Capacity Heavy-duty rating (dependent on exact OD and wall thickness)
Inspection Method Digital Bore Gauges, Concentricity testing, First Article Inspection

Material & Surface Specifications

Primary Material Mild Steel (MS) - IS 2062 Grade
Alternative Materials Carbon Steel (EN8 / EN9) for ultra-heavy loads, Stainless Steel (On request)
Standard Finish Heat Treated (Surface hardened for abrasion resistance)
Plating & Coating Options Zinc Plating, Black Oxide, Powder Coating, Polyurethane (PU) Coating
Corrosion Resistance Enhanced via chosen plating or coating method for humid environments
Welding Capability Excellent weldability for custom conveyor frame integration
Compliance Industrial standards compliant for heavy machinery
Certifications Material Test Certificates (MTC) and QA Reports provided
Our Expertise

How We Manufacture MS Conveyor Rollers

01
High-Grade MS Tube/Bar Sourcing

We source premium Mild Steel (IS 2062) seamless tubes or solid bars depending on the roller's load requirement. All raw materials are verified using spectrometers and checked against Mill Test Certificates to ensure they possess the right tensile strength and structural integrity.

02
CNC OD Turning & Facing

Leveraging our robust manufacturing infrastructure, the MS stock is cut to length and loaded into our CNC lathes. The outer diameter is precision turned to eliminate any ovality, ensuring the roller is perfectly cylindrical for balanced rotation.

03
Precision Bearing Seat Machining

The most critical step: machining the internal steps and bearing housings. We hold a strict ±0.02mm tolerance on these inner diameters. If the housing is too loose, the bearing will spin and destroy the roller; if too tight, the bearing will seize.

04
Heat Treatment (Surface Hardening)

To withstand the constant friction of conveyor belts and heavy materials, the machined rollers undergo specific heat treatments (like case hardening). This hardens the outer shell to resist wear, while leaving the core ductile enough to absorb sudden impact shocks without snapping.

05
Surface Coating & Plating

Depending on the client's operational environment, the rollers are finished with anti-corrosive treatments such as Zinc plating, Black Oxide, or industrial powder coating to prevent rust in humid warehouse or outdoor logistics settings.

06
Concentricity Check & Export Packaging

Every batch is checked for runout (concentricity) using dial indicators. Internal bearing bores are verified with Go/No-Go gauges. The finished rollers are then individually wrapped and secured in heavy-duty wooden crates designed for international sea or air freight.

Machines & Equipment

  • Heavy-Duty CNC Turning Centers
  • Traub Single Spindle Lathes
  • Internal Boring Machines
  • Cylindrical Grinders
  • Induction Hardening Equipment

Quality Control

  • Dial Indicators for Runout/Concentricity
  • Digital Bore Micrometers
  • Calibrated Go/No-Go Gauges
  • Surface Hardness Testers
  • Material Test Certificates (MTC)
Material Options

Steel Grades for Conveyor Rollers

Mild Steel (IS 2062 Grade)

Properties: An excellent general-purpose structural steel offering high ductility, superb weldability, and excellent machinability. While softer in its raw state, it responds very well to surface hardening treatments, making it highly cost-effective for mass-produced industrial hardware.

Best For: Standard warehouse conveyors, packaging lines, agricultural sorting equipment, and general light-to-medium duty material handling systems.

Standards:

IS 2062 ASTM A36 EN 10025 S275

Carbon Steel (EN8 / EN9) - On Request

Properties: Medium-carbon steels that offer significantly higher tensile strength and wear resistance natively compared to mild steel. They can be through-hardened or induction-hardened to achieve exceptional durability under extreme stress.

Best For: Mining conveyors, heavy automotive assembly lines, quarrying equipment, and systems carrying massive bulk loads.

Standards:

BS 970 EN8 / EN9 AISI 1040 / 1045 C45
Applications

Industries Relying on Our Guided Rollers

Logistics & Warehousing

Powering extensive gravity and motorized conveyor belts in massive fulfillment centers and package sorting hubs.

Mining & Aggregates

Heavy-duty rollers that withstand the abrasive dust and massive weight of raw ore, coal, and crushed stone.

Automotive Manufacturing

Supporting chassis frames and heavy vehicle components along slow-moving, high-capacity assembly lines.

Food & Packaging

Reliable, smooth-rolling hardware used in secondary packaging lines and palletizing equipment.

Product Comparison

OM Engineering Rollers vs Standard Rollers

Feature / Capability OM Engineering Works Standard Commercial Roller
Bearing Seat Tolerance ±0.02mm (Precision Bored) ±0.10mm (Loose fit, prone to vibration)
Concentricity (Runout) < 0.05mm TIR (Smooth rotation) Often wobbles at high speeds
Surface Hardness Heat Treated / Hardened Raw unhardened steel
Material Traceability Verified IS 2062/EN8 with MTC Unknown scrap or commercial pipe
Customization Full Customization to Drawings Fixed catalog sizes only
Common Questions

MS Guided Conveyor Rollers — FAQs

A guided roller is a precision-machined component specifically designed to keep a conveyor belt or moving load aligned. Unlike standard pipe rollers, which are often just cut-to-length tubes with basic end caps, our guided rollers have precision-bored internal housings (machined to ±0.02mm) that securely hold bearings. They are concentrically turned to ensure they do not wobble, reducing belt tracking issues and system vibrations.

Mild Steel is the industry standard for heavy-duty material handling because it provides an optimal balance of high strength, impact resistance (ductility), and cost-effectiveness. While Aluminum is too soft for heavy loads and Stainless Steel is prohibitively expensive for large-scale conveyor systems, MS can carry massive weights. We apply surface treatments (like Zinc plating or Heat Treatment) to give the MS roller the corrosion and wear resistance it needs.

The bearing seat is where the roller connects to the spinning bearing. If we machine this seat too loose (even by 0.1mm), the outer ring of the bearing will slip and spin inside the housing, rapidly destroying the roller from the inside out. If it is too tight, it will crush the bearing, causing it to seize. Our strict ±0.02mm tolerance ensures a perfect "press fit," guaranteeing the bearing absorbs the rotation smoothly for years.

In environments like mining or heavy logistics, the friction from belts and abrasive dust wears down raw metal quickly. Heat treating (such as case hardening) alters the microstructure of the steel's surface, making it exceptionally hard and wear-resistant. Crucially, it leaves the inner core of the steel relatively soft, allowing the roller to absorb heavy impact shocks without cracking or shattering.

Absolutely. Based in Mumbai, our facility is geared towards high-volume B2B manufacturing and global export. We utilize automated Traub and CNC machines for scalable production, package goods securely for sea/air freight, and provide all necessary export documentation, including Material Test Certificates (MTC), to ensure a smooth supply chain for international OEMs.
Related Capabilities

Explore Our Other Precision CNC Manufacturing Services

Precision Turned Components

CNC turned stainless steel, brass, alloy steel precision parts for automotive, hydraulic, and industrial OEM applications.

Traub Machining Job Work

High-volume Traub machine components with tight tolerances and repeatable batch production capability.

Custom Engineered Components

Manufacturing specialized mechanical hardware and assemblies based on your unique 2D/3D CAD designs.

Need Heavy Duty Rollers for Your Conveyor Systems?

Share your technical drawings or load requirements for a rapid quote. We guarantee ±0.02mm bearing tolerances and offer heat treatments for maximum longevity. MTC provided. Mumbai-based manufacturing, globally exported.
