What does NPT mean and why is it used for high-pressure systems?

NPT stands for National Pipe Taper. The tapered threads compress against each other when tightened, creating a tight, mechanical seal that is highly effective at preventing fluid or gas leaks in high-pressure applications.

Why use Brass C360 for hydraulic fittings?

Brass C360 offers a perfect balance of strength, natural corrosion resistance, and excellent machinability. It allows us to turn exceptionally precise threads (to our ±0.01mm tolerance) for reliable fluid sealing.

Can OM Engineering manufacture custom adapter profiles?

Yes. Utilizing our Traub and CNC turning centers, we can manufacture custom configurations including specific hex sizes, custom lengths, or NPT-to-metric conversions based on your drawings.

Precision Pipe & Tube Fittings

Brass NPT Hydraulic Adapter Manufacturer

Name: Brass NPT High-Pressure Hydraulic Adapter
Brand: OM Engineering Works
SKU: BNPT-001
Availability: InStock

High-quality CNC machined Brass NPT adapter plugs engineered for leak-free sealing in high-pressure hydraulic and pneumatic piping systems. Manufactured from premium Brass C360 with a strict ±0.01mm tolerance. Available in natural or chrome finishes. Serving the fluid power industry since 1975 from Bhayandar, Mumbai.

NPT Threaded Connection

Leak-Free Sealing

High-Pressure Rated

Corrosion Resistant Brass C360

±0.01mm Precision Tolerance

Custom Export Ready

Request Quote Call Now

50+ Years Experience ISO Quality Standards Global Export

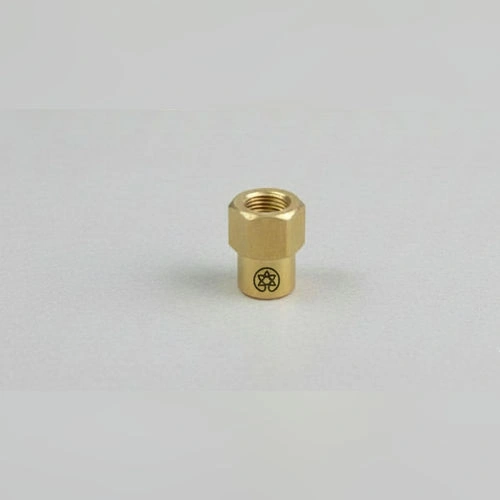

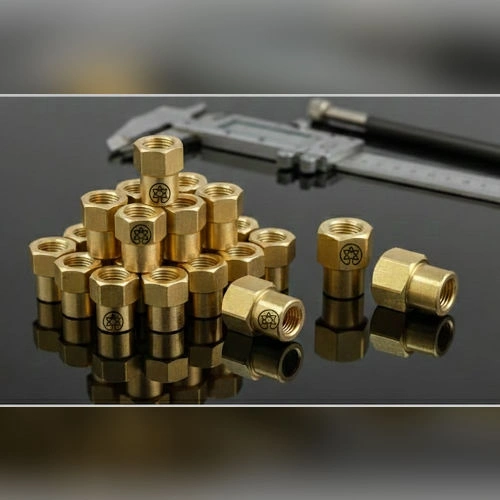

Brass NPT High-Pressure Hydraulic Adapter

Adapter Plug

NPT Threads

Side Profile

Natural Finish

50+

Years of Experience

±0.01

mm Thread Tolerance

100%

Leak-Free Tested

40+

Countries Exported To

Product Overview

High-Performance Brass NPT Hydraulic Adapters

Brass NPT (National Pipe Taper) hydraulic adapters are essential fluid power components designed to connect, terminate, or adapt piping and hose systems in high-pressure environments. The tapered nature of the NPT thread allows the flanks of the threads to compress against each other as the fitting is tightened, creating a robust, leak-free mechanical seal that withstands significant hydraulic and pneumatic pressure.

At OM Engineering Works, we manufacture custom CNC turned brass fittings utilizing high-grade Brass C360. Our manufacturing process heavily utilizes our advanced Traub machining and CNC turning capabilities. This ensures exceptional repeatability across high-volume production runs, maintaining a strict ±0.01mm tolerance on critical thread profiles.

Operating out of our advanced facility in Bhayandar, Mumbai, we produce a wide variety of adapter plugs, reducers, and male-to-female connectors. Whether you require standard NPT dimensions or custom thread-to-barb configurations, our third-generation engineering expertise guarantees components that fit perfectly and perform reliably under stress.

Key Features of Our Brass NPT Adapters:

Precision NPT Threading: Cut to exact ANSI/ASME B1.20.1 standards to ensure optimal thread engagement and fluid sealing without thread galling.
Premium Brass C360: Utilizes free-machining brass for excellent tensile strength, natural corrosion resistance, and superior machinability.
High-Pressure Capability: Engineered with appropriate wall thicknesses to handle the demands of heavy-duty hydraulic and industrial pneumatic lines.
Hex / Wrench Flats: Precision-milled flats provide secure grip for easy installation and maintenance using standard tools without damaging the fitting.
Vibration Resistance: Deep, clean threads ensure the adapter remains securely fastened even in high-vibration machinery environments.

Why Choose OM Engineering Works?

Uncompromising Tolerance: Achieving ±0.01mm means your adapters will seal correctly the first time, reducing assembly issues and fluid leaks.
Custom Finishes: Supplied in a natural, chemically cleaned brass finish, or plated with chrome/nickel for enhanced aesthetic and environmental protection.
Global Reach: We are set up for smooth B2B operations, regularly exporting components to international markets with full material traceability.
Scalable Production: From small custom batches to high-volume Traub turned job work, we scale to meet your supply chain demands.

Technical Details

Brass Adapter — Specifications

Dimensional & Threading Specifications

Thread Standard	NPT (National Pipe Taper) per ANSI/ASME B1.20.1
Available Sizes	1/8", 1/4", 3/8", 1/2", 3/4", 1" NPT (Custom sizes on request)
Dimensional Tolerance	±0.01mm (Critical features)
Manufacturing Process	Precision Traub Turning, CNC Turning, CNC Milling (for hex flats)
Configuration Types	Hex Head Plugs, Socket Head Plugs, Adapters, Reducers, Bushings
Application Range	Hydraulics, Pneumatics, Oil & Gas lines, Instrumentation
Pressure Rating	Suitable for high-pressure systems (Dependent on size/wall thickness)
Quality Standard	First Article Inspection, Go/No-Go Thread Gauge Verification

Material & Surface Specifications

Primary Material	Brass C360 (Free Machining Brass)
Alternative Materials	DZR Brass, Naval Brass, CZ121, CZ122, BS2874 (Upon request)
Standard Finish	Natural Brass (Chemically cleaned and deburred)
Plating Options	Nickel Plating, Chrome Plating, Tin Plating
Corrosion Resistance	Excellent natural resistance to water, oils, and general atmospheric conditions
Operating Temperature	-65°F to +250°F (-54°C to +121°C) standard operating range for brass
Compliance	RoHS Compliant materials available
Certifications	Material Test Certificates (MTC), Certificate of Conformance (CoC)

Our Expertise

How We Manufacture Precision Brass Adapters

Raw Material Sourcing & Inspection

We source premium extruded Brass C360 hex or round bars from trusted mills. All incoming raw material undergoes visual inspection and chemical composition checks to ensure it meets international standards, preventing defects during the high-speed machining process.

Traub & CNC Turning

The brass bars are fed into our high-speed Traub automatic lathes or CNC turning centers. The exterior profiles, tapers, and internal bores are precision-turned. Traub machines allow us to produce high volumes rapidly while maintaining our strict ±0.01mm tolerance on the turning axes.

Precision NPT Threading

Threading is the most critical step for hydraulic adapters. We utilize single-point CNC threading or specialized threading heads to cut the NPT taper accurately. A precise taper ensures the flanks of the male and female threads wedge together perfectly for a leak-proof seal.

Milling & Secondary Operations

If the adapter requires specific spanner flats, hex heads, or cross-holes that cannot be completed on the primary lathe, the components are moved to our milling stations. This ensures tools have a perfect grip surface during final installation.

Deburring & Surface Finishing

Fittings are thoroughly deburred to remove any sharp edges or loose brass flakes that could contaminate a hydraulic fluid system. They are then chemically washed to a bright "Natural" finish, or sent out for secondary Chrome or Nickel plating based on client requirements.

Quality Control & Packaging

Thread profiles are strictly checked using calibrated Go/No-Go ring and plug gauges. Dimensional checks are logged. Finally, the brass adapters are securely packaged in sturdy export-ready cartons to prevent thread damage during transit to international or domestic clients.

Machines & Equipment

Traub Single Spindle Automats
CNC Turning Centers
Thread Cutting & Rolling Attachments
Vibratory Finishing / Deburring Bowls
Ultrasonic Cleaning Stations

Quality Control

Calibrated NPT Thread Gauges
Digital Micrometers & Vernier Calipers
First Article Inspection (FAI)
Visual Thread Inspection under magnification
Material Test Certificates (MTC)

Material Options

Brass Grades for Hydraulic Fittings

Brass C360 (Free Machining Brass)

Properties: The industry standard for turned brass components. C360 has a 100% machinability rating. The addition of lead acts as an internal lubricant, allowing for high-speed machining, extending tool life, and yielding exceptionally smooth and precise thread profiles.

Best For: Standard hydraulic and pneumatic adapters, threaded plugs, pipe fittings, and high-volume Traub machined components.

Standards:

UNS C36000 CZ121 BS 2874 IS 319

DZR Brass (Dezincification Resistant)

Properties: Formulated to resist dezincification—a type of corrosion where zinc is leached out of the brass alloy, leaving a porous, weakened copper structure. Essential for applications involving specific water chemistries or harsh environments.

Best For: Fittings exposed to high-mineral water, marine environments, and specific industrial fluid piping where standard brass would degrade.

Standards:

CW602N CZ132 C35330

Applications

Industries Using Our Hydraulic Adapters

Fluid Power & Hydraulics

Connecting heavy-duty hydraulic hoses to pumps, cylinders, and control valves in industrial machinery and earth-moving equipment.

Pneumatic Systems

Providing secure, leak-free air line connections for factory automation, compressors, and air-driven tools.

Automotive

Air brake systems, fuel line adapters, and fluid transfer junctions requiring vibration-resistant thread engagement.

Plumbing & HVAC

Commercial plumbing manifolds, gas lines, and HVAC coolant lines utilizing standardized NPT threading for rapid installation.

Product Comparison

OM Engineering vs Typical Market Fittings

Feature / Capability	OM Engineering Works	Standard Off-the-Shelf Fitting
Dimensional Tolerance	±0.01mm (Precision CNC/Traub)	±0.05mm or higher
Material Quality	Verified Brass C360 (with MTC)	Unknown or mixed recycled brass
Thread Quality	Clean, burr-free, gauge-tested NPT	Rough cut, prone to galling/leaks
Customization	Custom sizes, threads, & finishes available	Limited to catalog sizes only
Finish Options	Natural or Chrome/Nickel Plated	Raw unpolished finish only

Common Questions

Brass NPT Adapters — FAQs

NPT stands for National Pipe Taper. Unlike straight threads (which require an O-ring or washer to seal), NPT threads have a slight taper (3/4 inch per foot). As the male and female NPT threads are wrenched together, the flanks compress against each other. This interference fit creates a tight, mechanical seal that is highly effective at preventing fluid or gas leaks in high-pressure hydraulic and pneumatic applications.

Brass C360 offers a perfect balance of strength, corrosion resistance, and machinability. It naturally resists rust and corrosion from water and oils without needing extra protective coatings. Furthermore, its excellent machinability allows us to cut extremely precise, smooth threads (to our ±0.01mm tolerance), which ensures a better seal. While steel is used for ultra-high-pressure applications, brass is highly preferred for standard to medium-high hydraulic and pneumatic lines due to its durability and cost-effectiveness.

Yes. While the tapered threads create the primary mechanical seal, there remains a tiny spiral leak path at the root and crest of the threads. A thread sealant (such as PTFE tape or liquid pipe dope) is standard industry practice. The sealant fills these microscopic voids and also lubricates the brass threads during assembly to prevent galling.

Absolutely. As a dedicated machining job shop utilizing Traub and CNC turning, we frequently manufacture custom configurations. Whether you need a specific NPT to Metric conversion, specialized hex sizes, extended lengths, or unique bore diameters, simply share your 2D drawing or 3D model. We can run custom batches alongside our standard adapter lines.

Yes, OM Engineering Works has been a trusted global exporter for decades. We are fully equipped for international B2B trade, managing logistics, standardizing export packaging, and providing all necessary material test certificates. Our goal is to provide international OEMs and distributors with a competitive edge through high-quality Indian manufacturing.

Related Capabilities

Explore Our Other Precision CNC Manufacturing Services

Precision Turned Components

CNC turned stainless steel, brass, alloy steel precision parts for automotive, hydraulic, and industrial OEM applications.

Traub Machining Job Work

High-volume Traub machine components with tight tolerances and repeatable batch production capability.

Rapid Prototyping & Small Batch CNC

Low MOQ prototype and development batch machining for new product tooling and validation.

Need Precision Brass NPT Adapters in Bulk?

Share your specifications, sizes, or custom drawings for a rapid quote. We offer scalable Traub manufacturing for high-volume orders, ensuring strict ±0.01mm tolerance. Mumbai-based manufacturing, globally exported.
