Industrial MS Panel Door Hinges (Barrel & Lift-Off)

Heavy-duty Mild Steel (MS) panel door hinges engineered specifically for electrical control panels, server racks, and industrial machinery enclosures. Widely known as barrel hinges or lift-off hinges, these components allow for rapid door removal and maintenance. CNC machined to a strict ±0.05mm tolerance to prevent door sagging and finished with an industrial powder coating for maximum corrosion resistance. Exporting globally from Mumbai, India.

Heavy-Duty Construction
Barrel & Lift-Off Design
Industrial Cabinet Grade
Corrosion Resistant Coating
±0.05mm Pin Tolerance
Weld-on & Bolt-on Options
Request Quote Call Now
3rd Gen Engineering ISO Quality Standards Global B2B Supply
Industrial MS Panel Door Hinge Heavy Duty Powder Coated Barrel Hinge Mild Steel Lift Off Hinge CNC Machined Cabinet Hinge
MS Panel Hinge
Panel Hinge
Powder Coated
Coated Finish

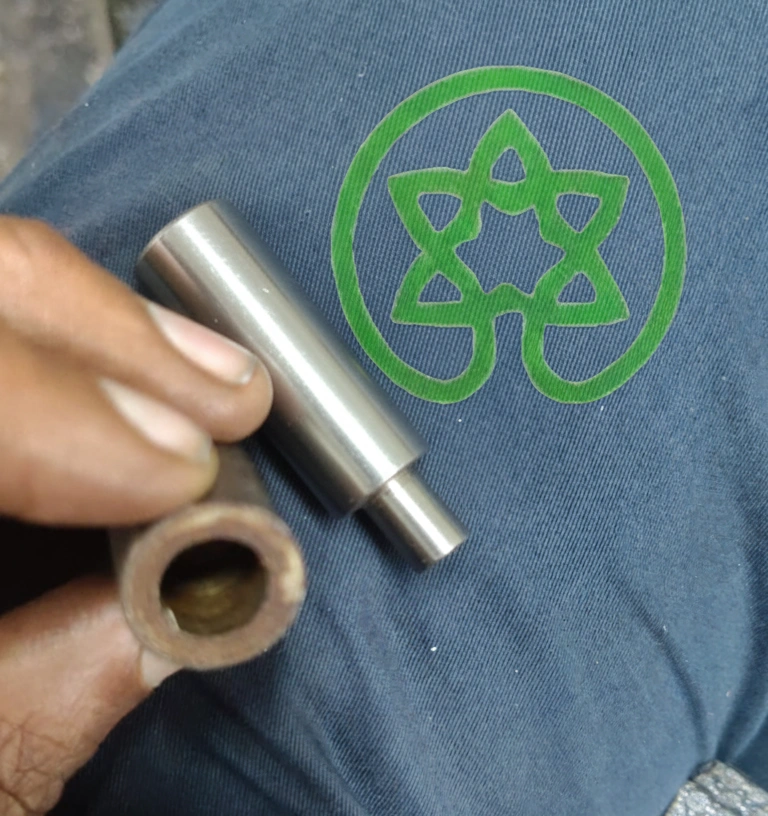

Lift-Off Design
Lift-Off Profile

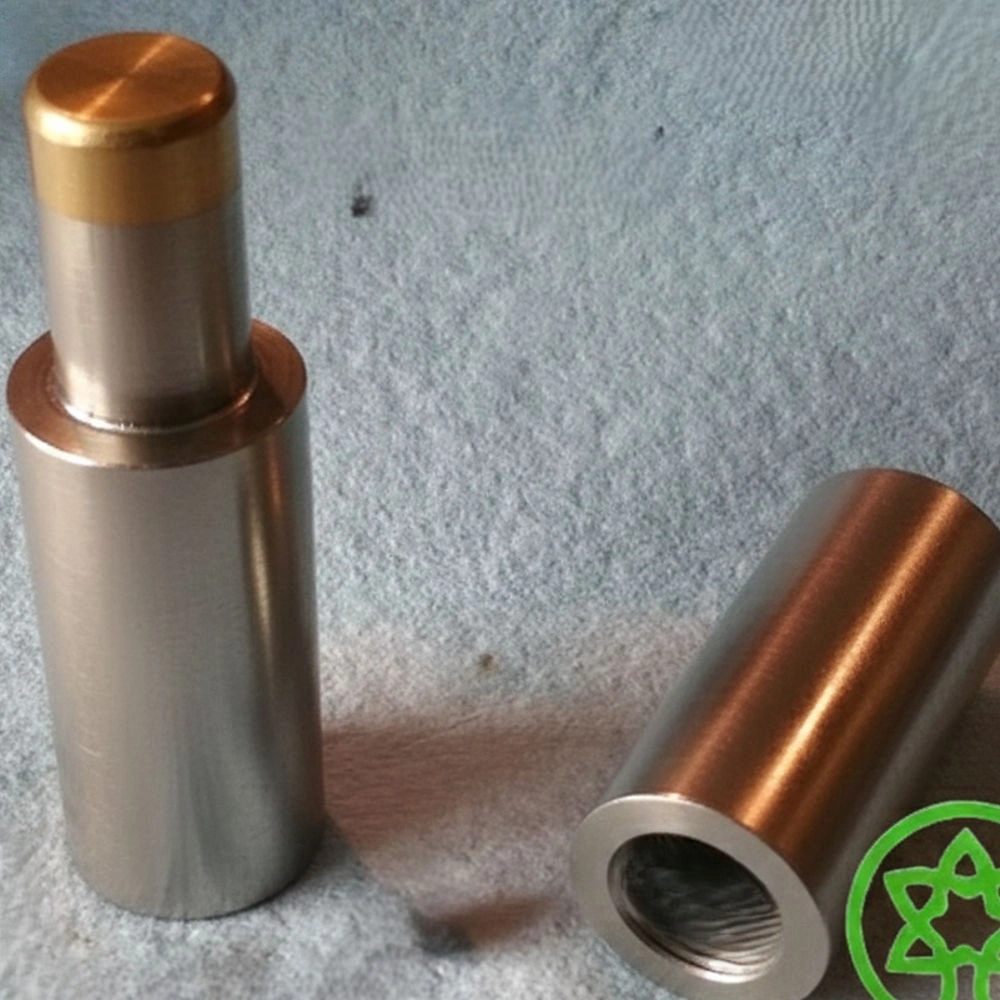

Barrel Hinge
Barrel Hinge
1975
Engineering Legacy
±0.05
mm Pin Tolerance
100%
Load Tested
40+
Countries Exported To
Product Overview

High-Capacity Barrel & Lift-Off Hinges

In the manufacturing and electrical infrastructure sectors, cabinet doors are heavy, cumbersome, and require frequent access for maintenance. Standard leaf hinges fail under these massive loads or make servicing difficult. This is where Industrial Panel Door Hinges—specifically designed as Barrel Hinges and Lift-Off Hinges—become essential.

These specialized two-piece hinges consist of a male pin side and a female barrel side. At OM Engineering Works, we utilize our advanced Traub turning and CNC machining centers to manufacture the internal pin and bore to an exacting ±0.05mm tolerance. This extreme precision ensures that the heavy cabinet doors swing smoothly without sagging, rattling, or binding. Furthermore, the lift-off design allows technicians to simply lift heavy electrical doors off their frames instantly, without unscrewing any hardware.

Operating from our facility in Bhayandar, Mumbai, we manufacture these robust Mild Steel hinges in bulk for global OEMs. To withstand harsh industrial and outdoor environments, the hinges are finished with an industrial-grade powder coating that perfectly matches standard electrical panel aesthetics while offering supreme rust protection.

Key Advantages of Our Industrial Panel Hinges:

  • Lift-Off Functionality: Two-piece bullet/barrel design allows rapid removal of cabinet doors for unimpeded access to internal electronics or machinery.
  • Anti-Sag Precision: A strict ±0.05mm clearance between the pin and the barrel ensures a perfectly tight fit, preventing heavy doors from drooping over time.
  • Heavy-Duty Mild Steel: Machined from solid MS bar stock (not cheap stamped sheet metal), providing massive load-bearing capacity for steel, lead-lined, or acoustic enclosure doors.
  • Powder Coated Finish: Electrostatic powder coating provides a durable, chip-resistant shield against moisture, chemicals, and factory grime.

Why Source from OM Engineering Works?

  • Scalable B2B Manufacturing: As a 3rd generation engineering firm, our automated CNC setup is optimized for high-volume, rapid-turnaround production.
  • Custom Mounting Profiles: Available as weld-on barrel hinges, or with custom drilled/tapped mounting leaves for bolt-on applications.
  • Export-Ready Reliability: Trusted by international panel builders and switchgear manufacturers, delivered with full QA documentation.
Technical Details

MS Barrel Hinge — Specifications

Dimensional & Machining Specs

Hinge Type Barrel Hinge, Lift-Off Hinge, Bullet Hinge
Overall Lengths 40mm, 60mm, 80mm, 100mm, 150mm (Custom lengths available)
Barrel Diameter (OD) 10mm up to 40mm
Pin & Bore Tolerance ±0.05mm (Ensures zero door sag and smooth pivoting)
Mounting Style Weld-On (Standard) or Bolt-On (With welded leaves/flats)
Internal Friction Mechanism Brass or SS Washer inserted between halves for smooth rotation
Manufacturing Process CNC Turning, Traub Machining, Milling, CO2 Welding
Load Capacity Heavy-duty rating (Supports up to 200kg+ per pair depending on size)

Material & Surface Specifications

Primary Material Mild Steel (MS) - IS 2062 Grade solid bar
Alternative Materials Stainless Steel (SS 304 / SS 316) for marine/food grade (On request)
Standard Finish Powder Coated (Standard RAL colors: Black, Grey, Siemens Grey)
Alternative Finishes Zinc Plated, Black Oxide, Natural (Oiled for welding)
Corrosion Resistance High (Powder coating provides excellent barrier against humidity)
Pin Material Carbon Steel or SS pin for added shear strength
Compliance Suitable for IP-rated and NEMA-rated electrical enclosures
Certifications Material Test Certificates (MTC) provided on request
Our Expertise

How We Manufacture Lift-Off Hinges

01
Solid Bar Stock Sourcing

We begin with premium Mild Steel (IS 2062) solid round bars. Unlike cheap stamped hinges that flex under weight, machining from solid bar stock guarantees the hinge will not deform when supporting massive electrical panel doors.

02
CNC & Traub Turning (The Pin & Barrel)

The steel bars are processed in our automated Traub machines. The male half (the pin) and the female half (the barrel) are turned simultaneously. We strictly enforce a ±0.05mm tolerance so the pin slides smoothly into the barrel without excessive play.

03
Milling & Leaf Welding (Optional)

If the client requires a "bolt-on" lift-off hinge, the machined barrels are transferred to our welding stations. Here, pre-drilled mild steel leaves (flaps) are precision-welded to the barrels using high-penetration CO2 welding for maximum shear strength.

04
Washer Integration

To prevent steel-on-steel friction which causes squeaking and rapid wear, a low-friction thrust washer (usually brass, SS, or engineered polymer) is seated between the two halves. This guarantees silent, buttery-smooth door operation.

05
Electrostatic Powder Coating

The assembled hinges undergo chemical cleaning to remove machining oils, followed by an electrostatic powder coating process. They are baked in an industrial oven, curing the powder into a thick, chip-resistant armor that matches industrial enclosure aesthetics.

06
Final QA & Export Packaging

Finished hinges are checked for smooth pivoting action and coating uniformity. They are then securely packed in heavy-duty cartons to protect the finish during sea or air transit to our global OEM partners.

Machines & Equipment

  • Automated Traub Lathes
  • CNC Turning Centers
  • CO2 MIG Welding Stations
  • Powder Coating Booths & Ovens
  • Vertical Milling Machines

Quality Control

  • Digital Micrometers (0.001mm accuracy)
  • Go/No-Go Pin Gauges
  • Coating Thickness (DFT) Meters
  • Load/Shear Testing Capability
  • Material Test Certificates (MTC)
Material Options

Steel Grades for Heavy-Duty Hinges

Mild Steel (IS 2062 Grade)

Properties: The global standard for structural industrial hardware. Mild steel provides excellent tensile strength, supreme weldability, and handles heavy impact loads without shattering. It is highly cost-effective for mass production and bonds perfectly with powder coating for corrosion resistance.

Best For: Indoor electrical cabinets, server racks, switchboards, machine enclosures, and standard factory equipment doors.

Standards:

IS 2062 ASTM A36 EN 10025 S275

Stainless Steel (SS 304) - On Request

Properties: For extreme environments where powder coating may eventually chip or fail, SS 304 provides natural, intrinsic resistance to rust, chemicals, and oxidation. It offers similar load-bearing capacities but with a premium, sanitary finish.

Best For: Outdoor telecom enclosures, marine electrical panels, food processing machinery cabinets, and pharmaceutical cleanroom doors.

Standards:

UNS S30400 EN 1.4301 AISI 304
Applications

Sectors Utilizing Our Lift-Off Hinges

Electrical Switchgear

Providing heavy-duty support for large control panels, VFD cabinets, and power distribution boards.

IT & Telecom Racks

Allowing technicians to instantly lift off heavy server rack doors for unimpeded 360-degree maintenance access.

Machine Enclosures

Securing acoustic and safety enclosures around CNC machines, generators, and heavy manufacturing equipment.

Transport & Logistics

Used on heavy utility vehicle compartments, specialized trailers, and heavy-duty toolboxes requiring removable lids.

Product Comparison

OM Engineering Machined Hinges vs Stamped Hinges

Feature / Capability OM Engineering (Machined Barrel) Standard Stamped Leaf Hinge
Structural Integrity Machined from solid steel bar (Massive load capacity) Bent sheet metal (Bends/fails under heavy weight)
Door Sag Prevention ±0.05mm pin-to-barrel tolerance Loose rolled knuckles cause immediate sagging
Maintenance Access Lift-Off design (Door removes instantly) Requires unscrewing multiple fixed bolts
Aesthetic Finish Industrial Powder Coated Cheap zinc plating or raw finish
Friction Control Integrated brass/SS thrust washer Metal grinding on metal (Squeaks and wears)
Common Questions

Barrel & Lift-Off Hinges — FAQs

In the industrial hardware sector, the terms are often used interchangeably. A Barrel Hinge (or bullet hinge) refers to its cylindrical, bullet-like shape machined from solid round metal. Because these hinges are typically made in two distinct halves (a male pin bottom and a female hollow top), they inherently act as Lift-Off Hinges, allowing the user to simply lift the door upward to separate the halves and remove the door entirely.

Electrical control panels and server cabinets often sit in tight factory spaces. During wiring, installation, or heavy maintenance, a swinging door is constantly in the technician's way. A lift-off barrel hinge allows the technician to remove the heavy steel door in seconds, do the work safely, and drop the door back onto the pins. Additionally, solid barrel hinges can support far more weight than standard leaf hinges.

If the gap between the male pin and the female barrel is too loose, a heavy steel door will immediately tilt or "sag" downward when opened. This prevents the door from latching correctly and ruins the IP-rating seal of the cabinet. Our strict CNC-machined ±0.05mm tolerance ensures the hinge remains perfectly vertical, carrying the load without leaning.

Powder coating is an electrostatic finishing process that is baked onto the metal. It creates an incredibly durable, chip-resistant armor that is far superior to standard liquid paint. It provides excellent resistance to factory chemicals, humidity, and minor impacts, ensuring the exterior hinges maintain the professional aesthetic of the electrical panel they are mounted on.

We supply both. We offer raw, uncoated barrel hinges specifically designed for panel builders who prefer to weld the hinges directly to the frame and paint the entire assembly together. We also manufacture fully powder-coated bolt-on variations featuring pre-drilled and welded mounting leaves, allowing for easy screw installation on finished cabinets.
