High-Pressure Pipe Closures

Stainless Steel Hex Pipe Cap Manufacturer

Heavy-duty Stainless Steel 316 hex pipe caps engineered to provide complete, blowout-proof closure at the end of pressurized fluid lines. Precision CNC machined from solid hex bar stock to a strict ±0.05mm thread tolerance. Ideal for hydrostatic system testing, manifold dead-ending, and permanent line termination in aggressive chemical and offshore environments. Manufactured in Mumbai, exported globally.

Complete High-Pressure Closure
Marine Grade SS 316
Deep Thread Engagement
System Testing Suitable
±0.05mm NPT/BSP Precision
Hex Body for Max Torque
Request Quote Call Now
Since 1975 ISO Quality Standards Global B2B Supply

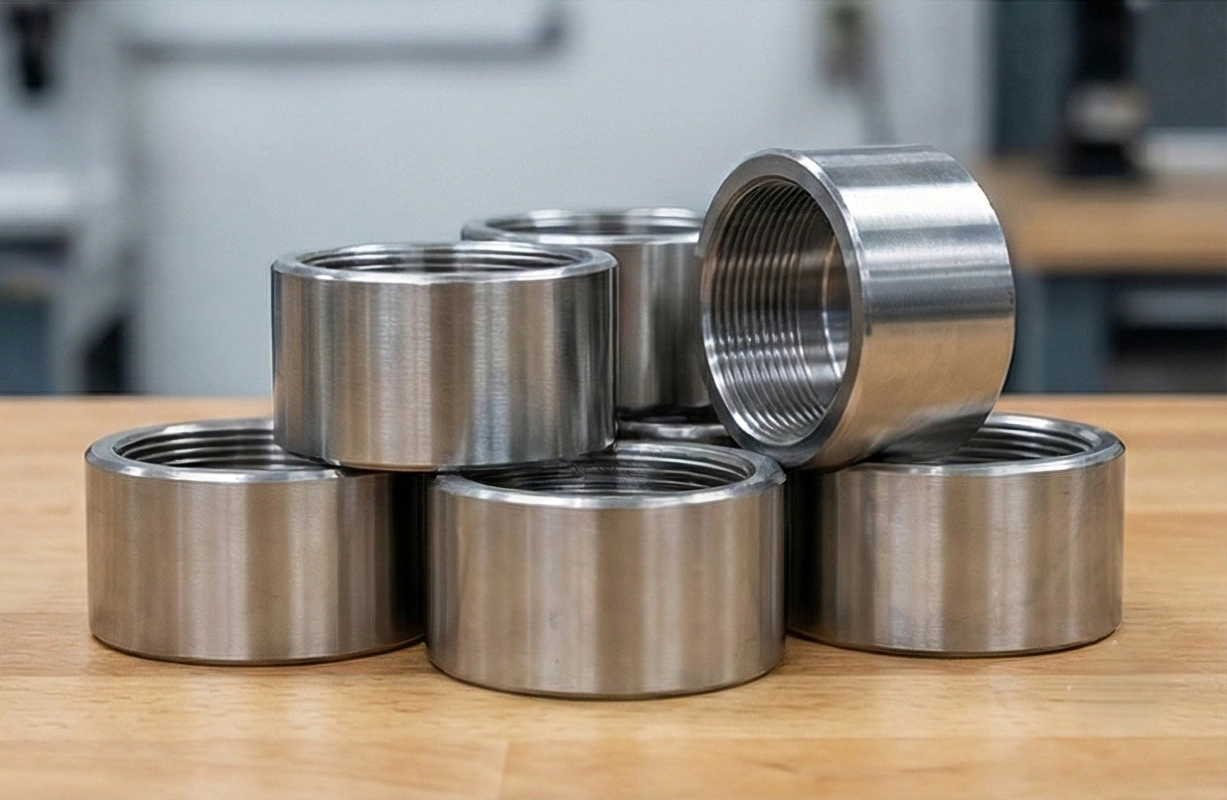

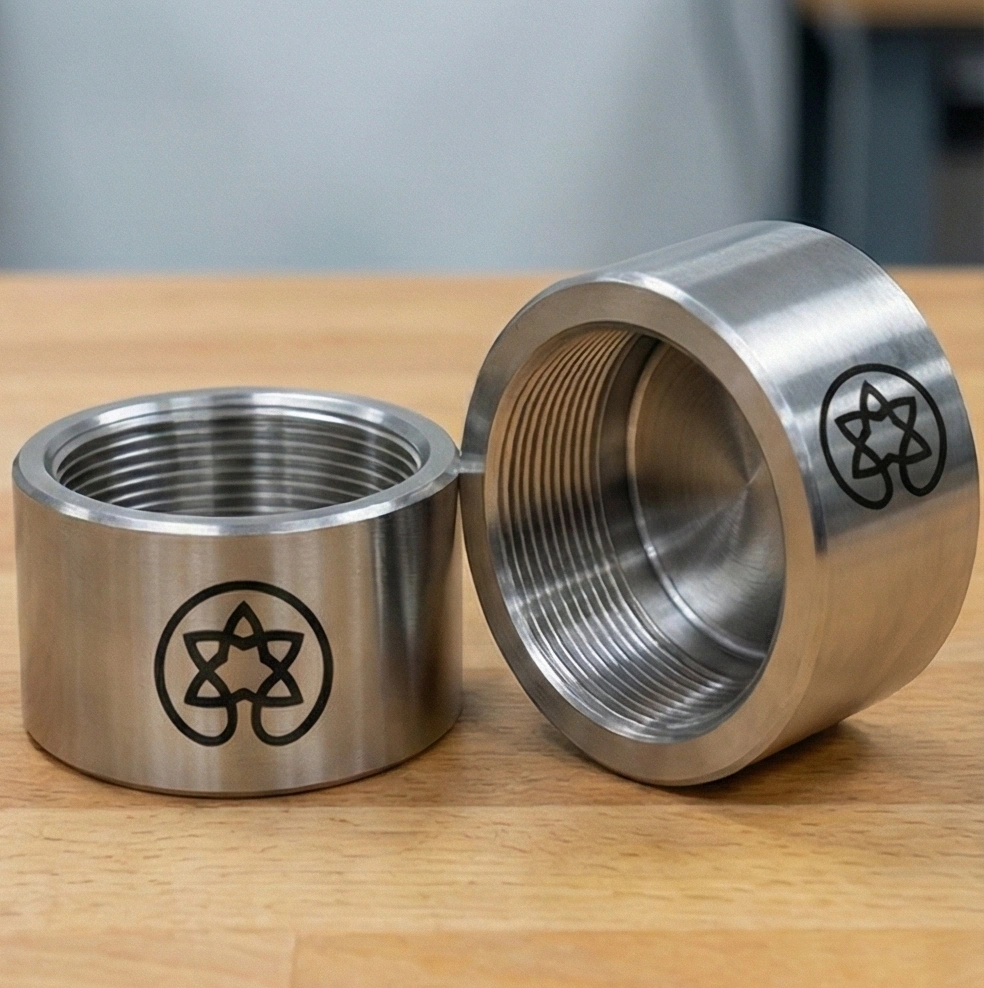

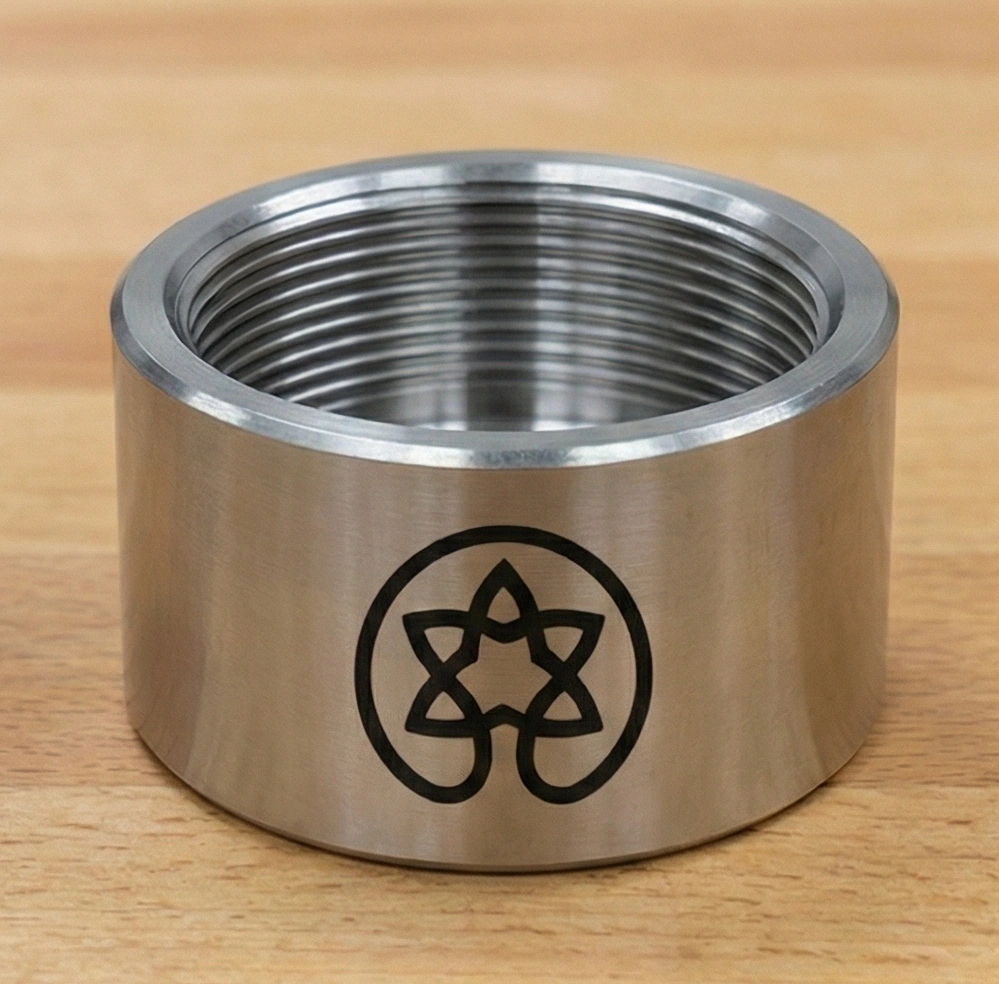

SS 316 Hex Pipe Cap Threaded End Closure Precision Female NPT Threads Solid Stainless Steel Hex Body High Pressure Pipe Cap Inspection
Hex Pipe Cap
Hex Pipe Cap
Internal Threads
Internal Threads
Solid Hex Body
Solid Hex Body
Natural Finish
Natural Finish
SS 316
Marine Grade Alloy
±0.05
mm Thread Precision
100%
Solid Bar Machined
40+
Countries Exported To
Product Overview

Heavy-Duty End Closures for Process Piping

In industrial piping networks, there is frequently a need to safely terminate a line. Whether closing off an unused manifold port, capping a pipe for future expansion, or sealing a system to perform hydrostatic pressure testing, the closure must be absolute. The SS 316 Hex Pipe Cap provides a blowout-proof female threaded seal designed to withstand immense hydrostatic pressures.

At OM Engineering Works, we manufacture these caps from solid Stainless Steel 316 hex bar stock using advanced CNC turning centers. Unlike cheap cast round caps that are porous and require pipe wrenches (which gouge the steel), our solid hex caps offer immense structural integrity. The hex profile allows technicians to apply maximum installation torque using standard flat wrenches, ensuring a deep, flawless wedge on tapered NPT threads.

Operating from our facility in Bhayandar, Mumbai, we cater to B2B clients in the chemical, petrochemical, and marine sectors. SS 316 is the mandatory material for these caps, as its molybdenum content provides unparalleled resistance to pitting and crevice corrosion caused by saltwater, acidic solvents, and harsh industrial environments.

Key Advantages of Our Hex Pipe Caps:

  • Absolute System Integrity: Machining from solid bar stock ensures zero micro-porosity, eliminating the risk of pressure seepage common in cast fittings.
  • Deep Thread Engagement: We CNC cut full, deep internal threads, ensuring maximum engagement with the male pipe end to handle extreme pressure spikes without stripping.
  • System Testing Ready: Ideal for temporary installation to cap lines during hydrostatic or pneumatic system leak testing before commissioning.
  • Wrench-Friendly Hex Body: Allows for safe, rapid installation and removal in tight spaces without scarring the rust-resistant stainless surface.

Why Source from OM Engineering Works?

  • Automated B2B Scalability: Utilizing our Traub machines alongside our CNCs, we can fulfill massive volume requirements for process OEMs rapidly and cost-effectively.
  • Precision Taper Threads: We utilize single-point CNC threading for NPT and BSP threads, ensuring clean thread roots that prevent galling during assembly.
  • Export Compliant: Every batch is supplied with EN 10204 3.1 Material Test Certificates (MTC) proving the SS 316 alloy composition, ensuring global compliance.
Technical Details

Hex Pipe Cap — Specifications

Dimensional & Threading Specs

Configuration Type End Closure / Pipe Cap (Female Thread)
Thread Standards NPT, BSPT, BSPP (Metric available on request)
Available Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Body Profile Solid Hexagonal Body for wrench tightening
Dimensional Tolerance ±0.05mm (Critical for taper thread sealing)
Manufacturing Process CNC Turning, Single Point Internal Threading
Pressure Rating Class 3000 / Schedule 80-160 Equivalent (High Pressure)
Quality Check Calibrated L1 Thread Plug Gauges

Material & Surface Specifications

Primary Material Stainless Steel 316 (SS 316 / 1.4401)
Alternative Materials SS 304, Carbon Steel, Brass C360 (On request)
Standard Finish Natural Machined / Lightly Polished (Ultrasonically Cleaned)
Corrosion Resistance Exceptional defense against saltwater, acids, and harsh weather
Operating Temperature -320°F to 1000°F (-196°C to 537°C) standard range for SS 316
End Wall Thickness Heavy-duty solid end to prevent blowout under hydrostatic pressure
Compliance Meets ASME B16.11 and B1.20.1 standards
Certifications Material Test Certificates (MTC) provided with batches
Our Expertise

How We Manufacture Pipe Caps

01
Premium SS 316 Hex Bar Sourcing

We source heavy-duty SS 316 hex bar stock from certified mills. We avoid using cast blanks for our high-pressure caps, as solid bar machining guarantees maximum burst pressure resistance and zero internal porosity.

02
High-Precision CNC Turning

The hex steel is loaded into our advanced CNC lathes. The machine faces the solid end of the cap flat, leaving optimal wall thickness, and drills a precise blind hole to prepare for threading.

03
Single-Point Internal Threading

Tapered pipe threads (like NPT) must wedge perfectly to seal. We use single-point CNC threading tools to cut the internal female threads to a strict ±0.05mm tolerance. This ensures deep, clean thread roots that won't tear or cross-thread during installation.

04
Chamfering & Deburring

The entry point to the thread is smoothly chamfered to allow male pipe threads to align easily without cross-threading. The fitting is then thoroughly deburred to ensure no microscopic metal shavings enter your process piping system.

05
Polishing & Ultrasonic Cleaning

The SS 316 caps are lightly polished to a professional finish. They are then run through an industrial ultrasonic cleaning bath to remove all traces of coolant and cutting oils, delivering a clean, contaminant-free component.

06
Thread Gauging & Export Packaging

Every batch is checked using calibrated L1 plug thread gauges. Approved caps are securely packaged in heavy-duty export cartons for safe transit to international OEMs and distributors.

Machines & Equipment

  • Heavy-Duty CNC Turning Centers
  • Traub Single Spindle Automats
  • Carbide Internal Threading Tooling
  • Ultrasonic Cleaning Stations
  • Polishing Tumblers

Quality Control

  • NPT / BSP L1 Plug Gauges
  • Digital Micrometers
  • First Article Inspection (FAI)
  • Visual Thread Inspection under Magnification
  • Material Test Certificates (MTC)
Material Options

Stainless Steel for High-Pressure Sealing

Stainless Steel 316 (SS 316)

Properties: The premium standard for offshore and chemical hardware. SS 316 contains 16% chromium, 10% nickel, and crucially, 2% molybdenum. This molybdenum addition drastically increases the alloy's resistance to pitting and crevice corrosion, particularly in environments rich with chlorides (like sea water or industrial brines).

Best For: Offshore oil platforms, marine hydraulics, aggressive chemical processing, paper/pulp manufacturing, and permanent pipeline dead-ends.

Standards:

UNS S31600 EN 1.4401 AISI 316

Stainless Steel 304 (SS 304) - On Request

Properties: The versatile, standard stainless alloy containing 18% chromium and 8% nickel. It provides excellent natural resistance to rust and oxidation in freshwater and standard industrial environments, offering high burst strength at a more economical price point.

Best For: Standard hydraulic systems, pneumatic manifolds, water treatment facilities, and indoor factory fluid transfer lines.

Standards:

UNS S30400 EN 1.4301 AISI 304
Applications

Industries Using Hex Pipe Caps

Oil & Gas Distribution

Providing blowout-proof dead-ends for future expansion lines on distribution manifolds handling pressurized gas or crude.

Chemical Processing

SS 316 provides the necessary corrosion resistance for safely sealing off ports exposed to aggressive solvents and mild acids.

System Commissioning

Used extensively by piping contractors to cap open lines temporarily while performing high-pressure hydrostatic system testing.

Marine & Offshore

SS 316 provides immunity to saltwater corrosion, making these caps ideal for permanently sealing unused ports on deck machinery.

Product Comparison

Solid Hex Caps vs. Cast Round Caps

Feature / Capability OM Engineering (Solid Hex Cap) Standard Cast Round Cap
Structural Integrity High Burst Pressure (Machined from solid bar) Prone to micro-porosity and cracking under pressure
Wrench Grip Hex body allows safe, high-torque installation Requires pipe wrenches, which scar the metal
Thread Quality CNC Single-Point Cut (±0.05mm precision) Often rough tapped, prone to cross-threading
Material Verification 100% Verified SS 316 with MTC Unknown scrap metal percentages
Testing Suitability Ideal for 3000 PSI Hydrostatic Testing Unsafe for extreme high-pressure testing
Common Questions

Hex Pipe Caps — FAQs

Both are used to dead-end a piping system, but they thread differently. A Pipe Cap has internal (female) threads and fits over the outside of a male pipe end. A Pipe Plug has external (male) threads and screws inside a female fitting or port.

Standard round caps require heavy-duty pipe wrenches to tighten. The serrated teeth of a pipe wrench dig deep into the stainless steel, scarring the surface and creating stress risers where corrosion can start. A Hex Body allows technicians to use standard flat wrenches, applying massive torque to achieve a high-pressure seal without damaging the fitting.

Stainless steel forms a protective oxide layer that stops rust. However, when tightening two SS threads against each other under friction, this layer can break down, causing the raw metal underneath to cold-weld or "gall." We mitigate this by CNC machining ultra-smooth, burr-free threads. We also strongly recommend applying a high-quality PTFE thread sealant paste or tape during installation to lubricate the connection.

Yes. Because they are machined from solid bar stock with deep CNC-cut threads, our hex pipe caps are frequently used by piping contractors to temporarily cap lines in order to perform high-pressure hydrostatic leak tests before system commissioning.

Absolutely. Industrial and petrochemical applications demand material certainty. Every batch of SS 316 caps manufactured in our Mumbai facility is accompanied by an EN 10204 3.1 Material Test Certificate, proving the exact chemical composition of the steel used.
Related Capabilities

Explore Our Fluid Control Manufacturing Services

Pipe & Tube Adapters

Explore our full range of Carbon Steel and SS threaded adapters, including hex plugs, reducers, and nipples.

Precision Turned Components

Custom CNC turning services for specialized fluid control valves, manifold blocks, and hydraulic spools.

High-Volume Traub Machining

Automated Traub machining for rapidly producing thousands of specialized nuts, adapters, and pipe fittings with repeatable accuracy.

Need High-Pressure SS 316 Pipe Caps?

Share your NPT/BSP thread sizes or volume requirements for a rapid B2B quote. We guarantee blowout-proof solid hex construction and supply verified SS 316 with full MTCs. Mumbai-based manufacturing, exported globally.
