Heavy-Duty Process Piping

Stainless Steel Hex Nipple Manufacturer

Heavy-duty, straight-line connectors featuring equal male threads on both ends. Engineered specifically for extreme environments, these Stainless Steel 316 hex nipples are rated for 3000 PSI and are integral for securely connecting valves and manifolds in oil, gas, and chemical distribution lines. CNC turned to a strict ±0.05mm tolerance for flawless NPT/BSP sealing. Exporting globally from Mumbai.

3000 PSI Pressure Rated
Marine Grade SS 316
Equal Male Threads (NPT/BSP)
Oil and Gas Approved
±0.05mm Thread Precision
Natural or Black Oxide Finish
Request Quote Call Now
Since 1975 ISO Quality Standards Global B2B Supply

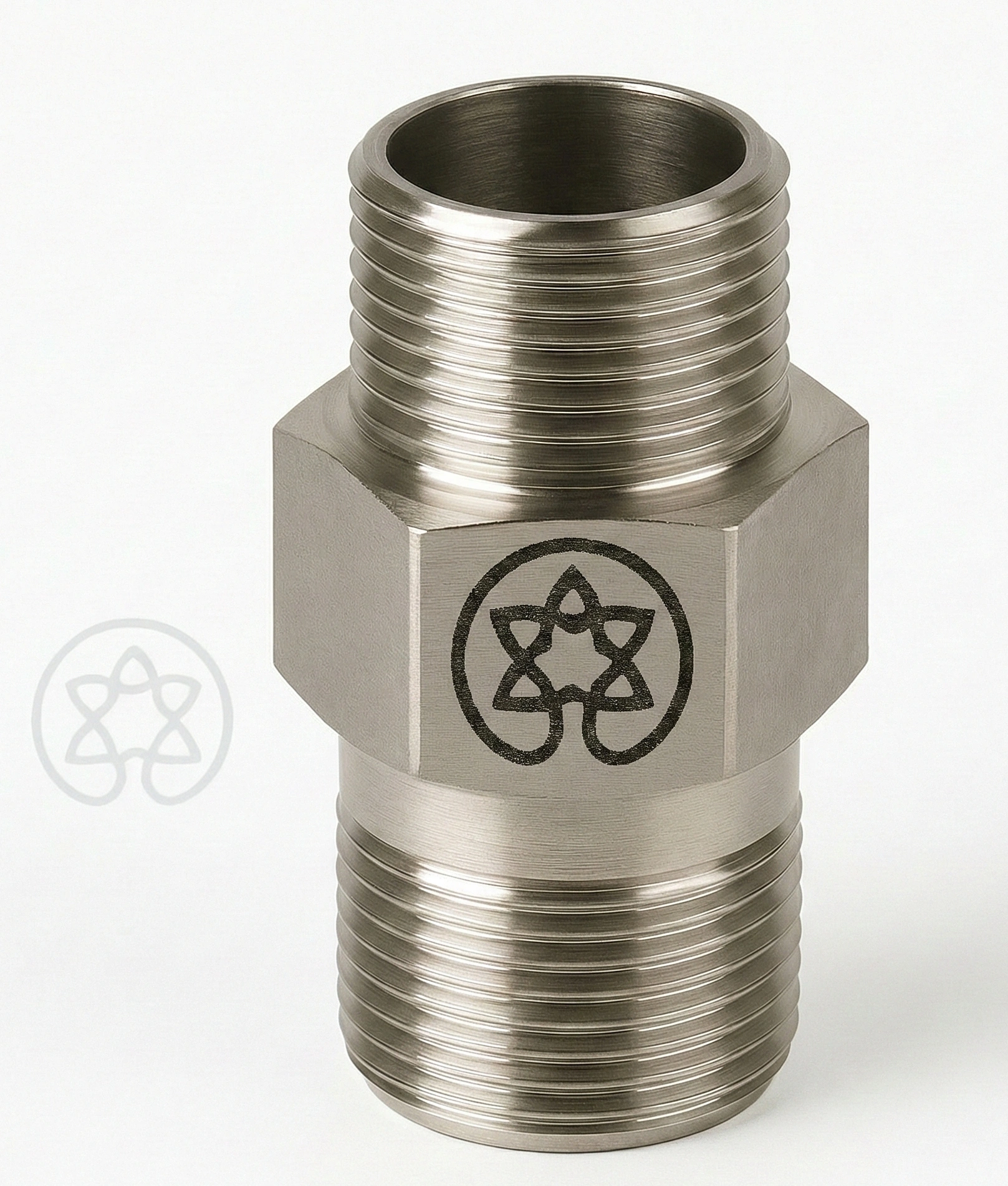

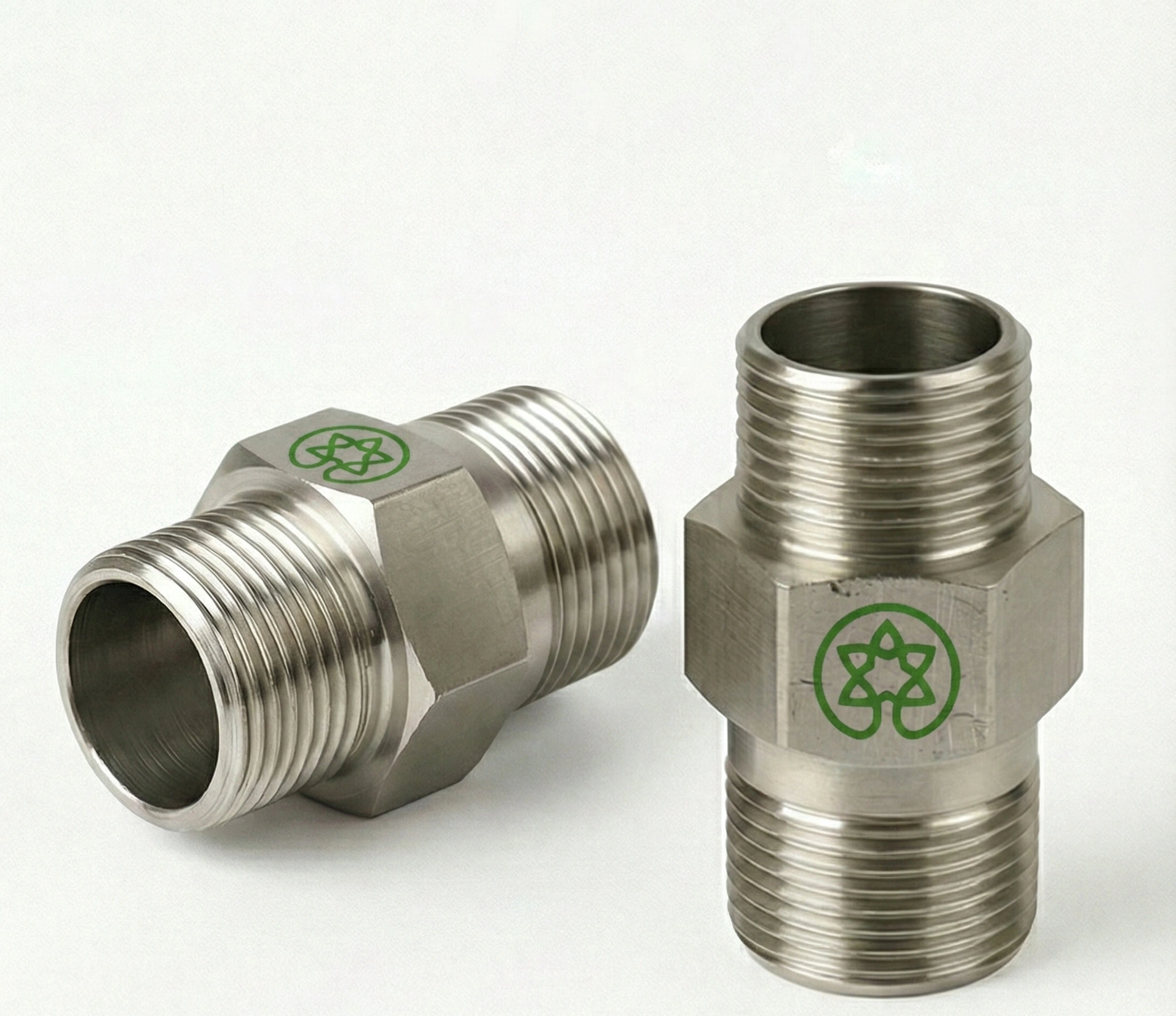

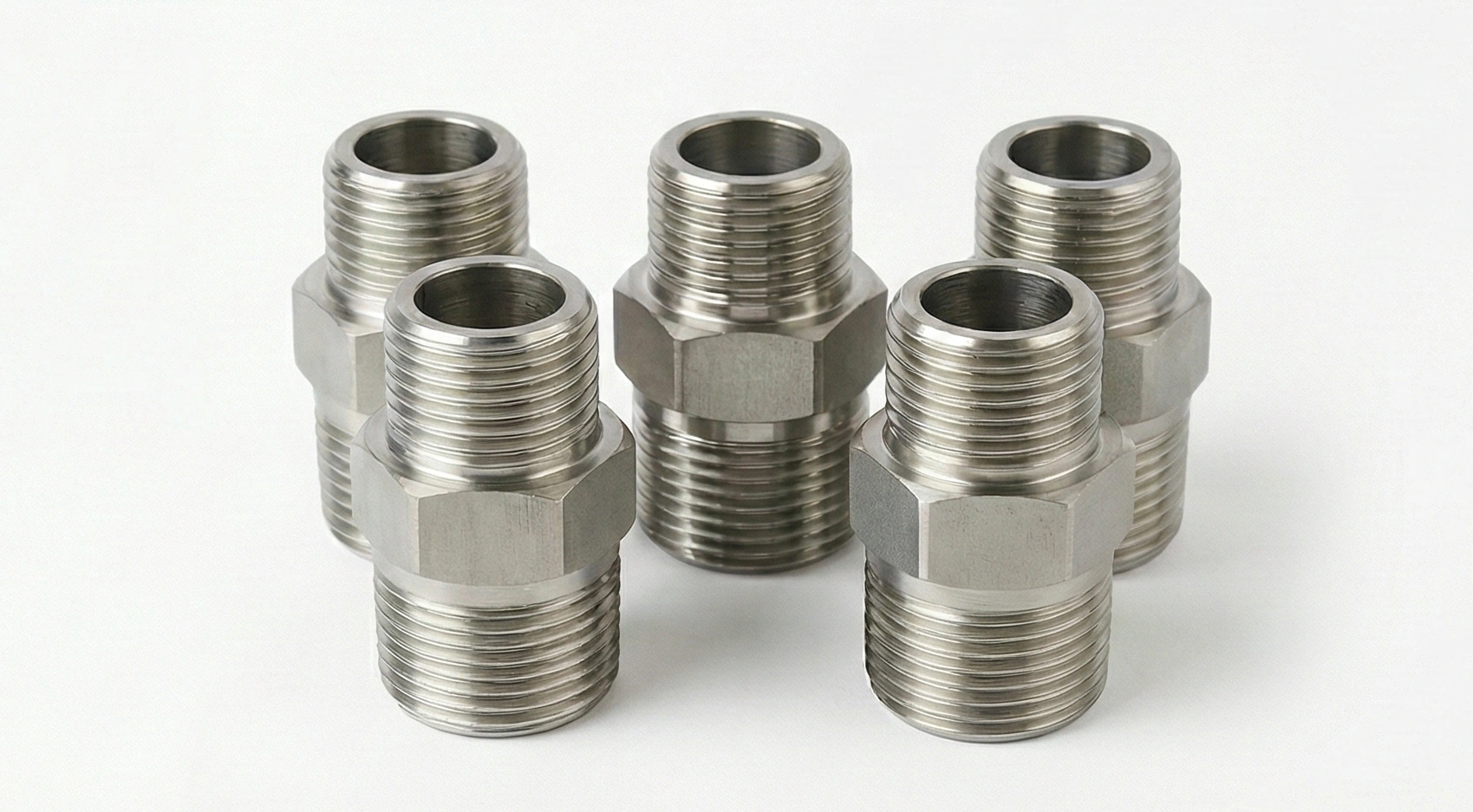

SS 316 High Pressure Hex Nipple 3000 PSI CNC Turned Male NPT Threads Stainless Steel Hex Profile Oil and Gas Pipe Fitting Inspection
Hex Nipple
Hex Nipple
Male Threads
Male Threads
Hex Body
Hex Body
Finished Fitting
Finished Fitting
3000
PSI Working Pressure
±0.05
mm Thread Precision
SS 316
Marine Grade Alloy
40+
Countries Exported To
Product Overview

Heavy-Duty Hex Nipples for Critical Sectors

In the demanding fields of oil and gas distribution, chemical processing, and marine hydraulics, piping components are subjected to brutal conditions. Standard cast fittings are prone to microscopic porosities that can rupture under high stress. The SS 316 High-Pressure Hex Nipple is a straight, dual-male connector designed specifically to eliminate these risks when joining heavy-duty valves, pumps, and manifolds.

At OM Engineering Works, we manufacture these robust nipples directly from solid Stainless Steel 316 hex bar stock using advanced CNC turning centers. Machining from solid bar ensures structural integrity, allowing the fitting to confidently maintain a 3000 PSI working pressure. We cut the NPT or BSP tapered threads using single-point CNC tooling to a stringent ±0.05mm tolerance, ensuring the flanks wedge perfectly for a blowout-proof mechanical seal.

Operating from our facility in Bhayandar, Mumbai, we exclusively utilize SS 316 for these high-tier fittings. The addition of molybdenum makes this alloy highly resistant to the pitting and crevice corrosion caused by saltwater, sour gas, and aggressive industrial solvents—making it the approved choice for offshore and petrochemical applications.

Key Advantages of Our SS 316 Hex Nipples:

  • 3000 PSI Rated: Equivalent to heavy-duty Schedule 80/160 pipe standards, ensuring safe fluid transfer in volatile high-pressure systems.
  • Integrated Hex Center: Unlike smooth pipe nipples that require pipe wrenches (which gouge and damage the steel), our hex center allows technicians to safely apply maximum torque using standard wrenches.
  • Superior Thread Geometry: CNC threading eliminates the torn threads often produced by high-speed die cutting, drastically reducing the risk of stainless-on-stainless thread galling.
  • Marine & Petrochemical Grade: True SS 316 composition resists the harshest offshore and underground corrosive elements.

Why Source from OM Engineering Works?

  • Volume & Consistency: Utilizing our Traub automated lathes alongside CNCs, we can fulfill massive volume requirements for global infrastructure projects without sacrificing tolerance.
  • Custom Finishes: Available in an ultrasonically cleaned natural finish or a specialized Black Oxide coating for specific aesthetic or mild anti-galling requirements.
  • Export Compliant: Every batch is supplied with EN 10204 3.1 Material Test Certificates (MTC) proving the authentic chemical composition of the steel.
Technical Details

High-Pressure Nipple — Specifications

Dimensional & Threading Specs

Configuration Type Straight Hex Nipple (Male to Male)
Thread Standards NPT, BSPT, BSPP (Metric available on request)
Available Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2"
Body Profile Central Hexagonal Nut for wrench tightening
Dimensional Tolerance ±0.05mm (Critical for high-pressure sealing)
Manufacturing Process CNC Turning, Single Point Threading, Deep Boring
Pressure Rating Class 3000 (3000 PSI) / Schedule 80-160 Equivalent
Quality Check Calibrated L1 Thread Ring Gauges

Material & Surface Specifications

Primary Material Stainless Steel 316 (SS 316 / 1.4401)
Alternative Materials SS 304, Duplex SS, Carbon Steel A105 (On request)
Standard Finish Natural Machined (Ultrasonically Cleaned)
Alternative Finish Black Oxide (Provides mild lubricity against galling)
Corrosion Resistance Exceptional defense against saltwater, chlorides, and sour gas
Operating Temperature -320°F to 1000°F (-196°C to 537°C) standard range for SS 316
Compliance Meets ASME B1.20.1 (NPT), ASME B16.11 standards
Certifications EN 10204 3.1 Material Test Certificates (MTC) provided
Our Expertise

How We Manufacture 3000 PSI Nipples

01
Marine-Grade SS 316 Sourcing

For 3000 PSI ratings, material integrity is non-negotiable. We source solid SS 316 hex bar stock from certified mills, rejecting welded tubing entirely. MTCs verify the exact molybdenum content, ensuring the alloy is ready for extreme petrochemical environments.

02
Heavy-Duty CNC Turning

The hex steel is loaded into our rigid CNC turning centers. The machine turns down both ends to the precise major diameter for threading, leaving the robust central hex nut intact to handle heavy installation torque.

03
Internal Boring (Unrestricted Flow)

A deep internal bore is drilled through the center of the solid steel. We ensure the inner wall thickness is precisely calculated to meet Class 3000 pressure ratings while keeping the bore smooth to prevent fluid turbulence.

04
Single-Point CNC Threading

To seal 3000 PSI of fluid, the tapered threads must be flawless. We utilize single-point carbide threading tools to cut both NPT/BSP threads to a strict ±0.05mm tolerance. This ensures deep, clean thread roots that won't tear or "gall" during assembly.

05
Cleaning & Optional Black Oxide

Fittings are thoroughly deburred to remove internal swarf and ultrasonically cleaned. Upon request, they can be processed through a hot Black Oxide chemical bath, which deposits a micro-thin conversion coating that acts as a mild anti-galling lubricant without altering thread dimensions.

06
Thread Gauging & Export Packaging

Every batch is strictly checked using calibrated L1/L2 taper thread ring gauges. Approved fittings are fitted with plastic thread protectors and packed in sturdy corrugated cartons for secure international B2B shipping.

Machines & Equipment

  • Advanced CNC Turning Centers
  • Traub Automats (For high-volume runs)
  • Carbide Single-Point Threading Tooling
  • Ultrasonic Cleaning Stations
  • Black Oxide Treatment Baths

Quality Control

  • NPT / BSP L1 Ring Gauges
  • Digital Micrometers
  • Visual Thread Inspection under Magnification
  • First Article Inspection (FAI)
  • Material Test Certificates (MTC)
Material Options

Stainless Steel for Oil & Gas

Stainless Steel 316 (SS 316)

Properties: The premium standard for offshore and chemical hardware. SS 316 contains 16% chromium, 10% nickel, and crucially, 2% molybdenum. This molybdenum addition drastically increases the alloy's resistance to pitting and crevice corrosion, particularly in environments rich with chlorides (like sea water, de-icing salts, or sour gas).

Best For: Offshore oil platforms, marine hydraulics, aggressive chemical processing, paper/pulp manufacturing, and high-purity pharmaceutical piping.

Standards:

UNS S31600 EN 1.4401 AISI 316

Stainless Steel 304 (SS 304) - On Request

Properties: The versatile, standard stainless alloy containing 18% chromium and 8% nickel. It provides excellent natural resistance to rust and oxidation in freshwater and standard industrial environments but lacks the extreme saltwater defense of SS 316.

Best For: Standard hydraulic systems, pneumatic manifolds, water treatment facilities, and indoor factory fluid transfer lines.

Standards:

UNS S30400 EN 1.4301 AISI 304
Applications

Sectors Using 3000 PSI Nipples

Oil & Gas Distribution

Securely connecting heavy-duty ball valves and flow meters on distribution manifolds handling pressurized sour gas or crude.

Marine & Offshore

SS 316 provides immunity to saltwater corrosion for hydraulic winch lines, deck machinery, and ROV systems.

Chemical Processing

Rust-free, blowout-proof connections for transferring highly aggressive solvents and acids through factory piping.

High-Pressure Hydraulics

Mating directional control valves to pump discharge blocks where standard pressure ratings would fail.

Product Comparison

CNC Hex Nipples vs. Cast Pipe Nipples

Feature / Capability OM Engineering (Solid Hex SS 316) Standard Cast or Barrel Nipple
Structural Integrity 3000 PSI Rated (Machined from solid bar) 150-300 PSI Rated (Prone to cracking under pressure)
Wrench Grip Integrated Hex Nut (Safe, tight torquing) Smooth barrel requires pipe wrenches (Scars the steel)
Thread Quality CNC Single-Point Cut (±0.05mm precision) Often rough die-cut, leading to immediate galling
Corrosion Resistance True SS 316 (Marine & Petrochem grade) Often cheaper SS 304 or prone to flash-rusting
Material Verification 100% Verified with MTC Unknown scrap metal percentages
Common Questions

High-Pressure Hex Nipples — FAQs

A standard smooth pipe nipple requires a serrated pipe wrench to install. On stainless steel, those teeth gouge deeply into the metal, creating stress risers and ruining the rust-resistant surface. A Hex Nipple features a central hexagonal body, allowing technicians to apply massive torque using a standard flat wrench without damaging the fitting or compromising safety.

Standard commercial cast fittings are typically only rated for Class 150 or Class 300 pressures. A Class 3000 (3000 PSI) rating means this fitting is engineered with a thicker internal wall and machined from solid bar stock, allowing it to safely withstand the immense pressure spikes found in industrial hydraulic systems and petrochemical distribution lines without bursting.

Stainless steel forms a protective oxide layer that stops rust. When tightening two SS threads under high friction, this layer breaks down, and the raw metal can cold-weld (gall) together. We prevent this by CNC machining ultra-clean, burr-free threads. We also highly recommend using a quality PTFE thread sealant paste during installation. Alternatively, our Black Oxide finish option provides a mild lubricating barrier against galling.

Yes. While standard hex nipples feature the same thread size on both ends, our CNC turning capability allows us to easily manufacture Reducing Hex Nipples (e.g., 3/4" NPT Male to 1/2" NPT Male) or even mixed standard nipples (e.g., 1/2" NPT Male to 1/2" BSPT Male) upon request.

Absolutely. The Oil & Gas industry demands absolute material certainty. Every batch of SS 316 fittings manufactured in our Mumbai facility is accompanied by an EN 10204 3.1 Material Test Certificate, verifying the precise chemical composition (including molybdenum content) of the steel used.
Related Capabilities

Explore Our Fluid Control Manufacturing Services

Pipe & Tube Fittings

Explore our full range of SS and Carbon Steel pipe adapters, including high-pressure ferrule connectors and reducers.

Precision Turned Components

Custom CNC turning services for specialized fluid control valves, manifold components, and high-pressure hydraulic spools.

High-Volume Traub Machining

Automated Traub machining for rapidly producing thousands of specialized nuts, adapters, and pipe plugs with repeatable accuracy.

Need 3000 PSI SS 316 Hex Nipples?

Share your NPT/BSP thread sizes or volume requirements for a rapid B2B quote. We guarantee ±0.05mm CNC thread tolerances and supply verified SS 316 with full MTCs. Mumbai-based manufacturing, globally exported to the Oil & Gas sector.

Request a Quote WhatsApp Quote +91 9324078101
