Why is a Solid pipe plug better than a standard cored plug?

Many commercial pipe plugs are hollowed out to save material cost. In heavy industrial applications, these thin walls can collapse or the head can snap off under heavy torque. A Solid Plug machined from bar stock eliminates these blow-out risks entirely.

Should I choose a Square Head or a Hex Head?

Square heads offer four large, flat surfaces that are difficult to round off with an adjustable wrench. Hex heads allow for standard socket sets and closed-end wrenches, making them ideal for tight clearances or assembly lines.

When should I use Brass instead of Steel?

Steel is preferred for high-pressure hydraulics. Brass is superior for cooling systems, radiators, and water lines because it will not rust and conforms beautifully to cast iron female ports to create a reliable seal.

Leak-Proof Fluid Control

Solid Pipe Plug Manufacturer

Name: Square Head Solid Pipe Plug (Hydraulic)
Brand: OM Engineering Works
Availability: InStock

Precision-engineered solid pipe plugs designed to seal the end of female threaded ports safely and permanently. Machined from solid steel or brass bar stock—eliminating the blow-out risks associated with hollow cast plugs. Featuring high-torque square or hex heads and strict ±0.02mm NPT/BSP taper threads. Extensively used in high-pressure hydraulic manifolds, automotive engine blocks, and industrial radiators. Exporting globally from Mumbai.

Solid Bar Construction

Tapered Thread Seal (NPT/BSP)

High-Torque Square/Hex Head

High Temperature Resistant

±0.02mm CNC Precision

Chrome / Nickel Plated Defense

Request Quote Call Now

3rd Gen Legacy ISO Quality Standards Global B2B Supply

Solid Plug

Tapered Threads

Square Head

Plated Finish

±0.02

mm Thread Precision

100%

Solid Bar Machined

High

Pressure & Temp Rated

40+

Countries Exported To

Product Overview

Heavy-Duty Solid Pipe Plugs

In hydraulic manifolds, engine blocks, and fluid distribution networks, sealing an unused port safely is critical. The market is flooded with cheap, hollow "cored" cast plugs. While acceptable for low-pressure residential plumbing, hollow cast plugs frequently crack under high wrench torque or blow out under extreme industrial fluid pressure. The Solid Pipe Plug is the engineered solution to this failure point.

At OM Engineering Works, we manufacture our square and hex head pipe plugs from 100% solid steel or brass bar stock. Utilizing our advanced CNC turning centers, we machine the NPT or BSP tapered threads to an exacting ±0.02mm tolerance. Because the plug is solid metal, technicians can apply maximum sealing torque to the square head without fear of shearing the head off or collapsing the plug walls.

Operating out of our facility in Bhayandar, Mumbai, we cater to B2B clients in the automotive, agricultural, and heavy machinery sectors. Our solid plugs are finished with high-quality Chrome or Nickel plating, ensuring they resist oxidation, high-temperature engine coolants, and harsh hydraulic oils for decades.

Key Advantages of Our Solid Pipe Plugs:

Blow-Out Proof: Solid metal construction ensures the plug can withstand hydrostatic pressure spikes that would easily shatter a hollow cast plug.
High-Torque Square/Hex Head: The prominent head design allows for a secure grip using standard adjustable or open-end wrenches, making installation and removal simple even after years of use.

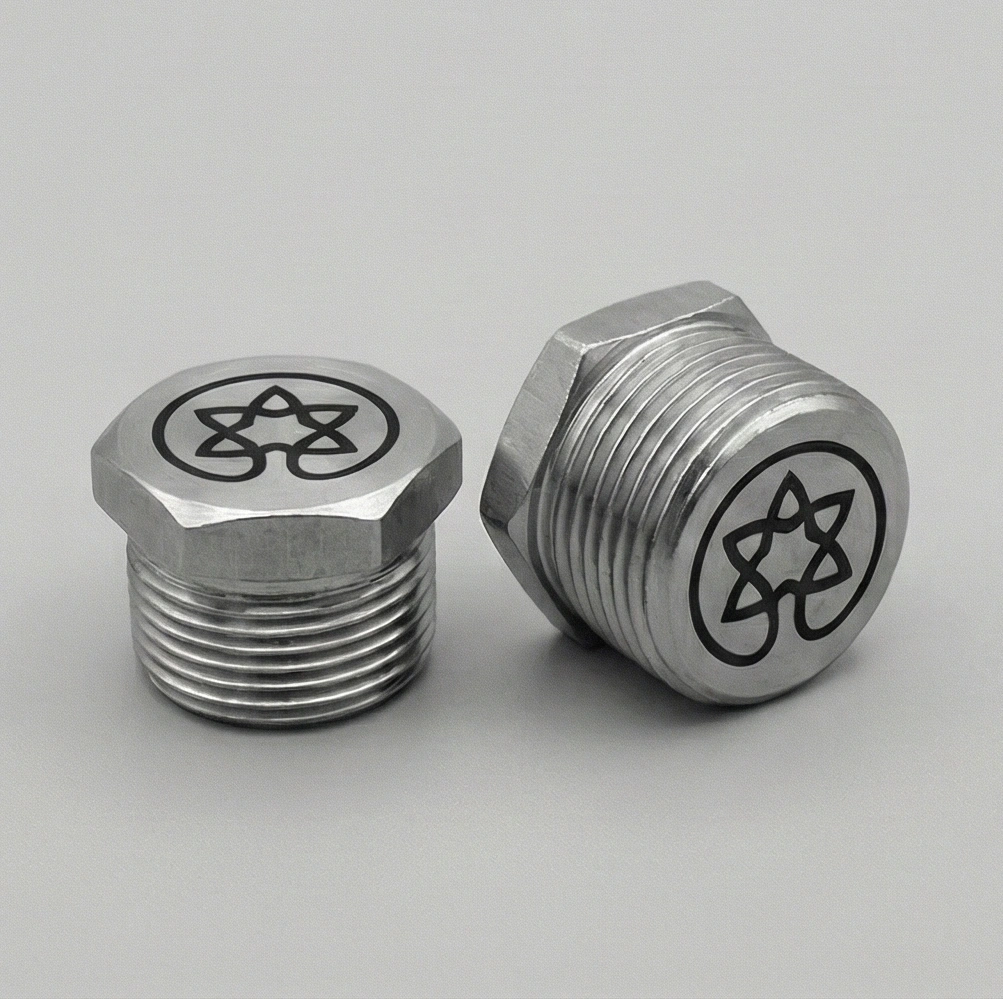

Precision Taper Sealing: Single-point CNC threading ensures the NPT/BSPT threads wedge perfectly into the female port, creating a mechanical seal that eliminates fluid weeping.
Temperature & Chemical Resistant: Available in Brass for cooling systems (radiators) or plated Steel for high-heat engine blocks and hydraulic oil manifolds.

Why Source from OM Engineering Works?

High-Volume Traub Machining: We utilize automated Traub machines to rapidly turn solid bar stock into pipe plugs, allowing us to supply global OEMs with massive quantities at highly competitive rates.
Zero Cross-Threading: Our CNC threading process creates smooth, burr-free threads that start easily by hand, saving assembly line time.
Material Traceability: We provide full Material Test Certificates (MTC) to guarantee the metallurgical strength of your components.

Technical Details

Solid Pipe Plug — Specifications

Dimensional & Threading Specs

Product Type	Solid Pipe Plug (End Closure)
Thread Standards	NPT, BSPT, BSPP (Metric threads available)
Available Sizes	1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Head Profile	Square Head (Standard) or Hexagonal Head
Internal Profile	100% Solid (No hollow coring)
Dimensional Tolerance	±0.02mm (Critical for taper thread sealing)
Manufacturing Process	CNC Turning, Single Point Threading, Head Milling
Quality Check	Calibrated L1 Thread Ring Gauges

Material & Surface Specifications

Primary Materials	Carbon Steel (EN8/1018) or Free Machining Brass (C360)
Alternative Materials	Stainless Steel (SS 304 / SS 316)
Standard Finishes (Steel)	Chrome Plated, Nickel Plated, or Zinc Plated
Standard Finishes (Brass)	Natural Machined or Nickel Plated
Corrosion Resistance	Excellent resistance to hydraulic oils, coolants, and moisture
Operating Pressure	High-Pressure Hydraulics (Up to 10,000 PSI depending on size/material)
Compliance	Meets ASME B16.14 and SAE standard dimensions
Certifications	Material Test Certificates (MTC) provided with batches

Our Expertise

How We Manufacture Solid Plugs

Solid Square/Hex Bar Sourcing

We source heavy-duty solid square or hex bar stock directly from certified steel and brass mills. By starting with a pre-shaped solid bar, we ensure the head of the plug is intrinsically part of the main body, guaranteeing it will never snap off under heavy torque.

High-Volume Traub / CNC Turning

The bar stock is fed into our automated Traub machines. The lathe rapidly turns down the threaded portion of the plug while leaving the square or hex head intact. For highly specialized sizes, our CNC turning centers provide flawless precision.

Precision Taper Threading

To seal high-pressure hydraulic fluid or engine coolant, the tapered threads must wedge perfectly. We use single-point CNC threading tools to cut the NPT or BSPT male threads to a strict ±0.02mm tolerance, avoiding the torn threads common with high-speed die cutting.

Chamfering & Deburring

The tip of the plug is smoothly chamfered. This allows the plug to easily align with the female port and start threading by hand. All parts are then thoroughly deburred and run through an ultrasonic wash to remove residual cutting oils.

Electroplating (Chrome/Nickel)

Carbon steel plugs undergo an electroplating process, depositing a bright Chrome, Nickel, or Zinc layer. This protects the steel from rusting when exposed to outdoor weather or mixed with water-based engine coolants. Brass plugs are typically left in their natural, corrosion-resistant state.

Thread Gauging & Export Packaging

Every batch is strictly checked using calibrated L1 taper thread ring gauges. The finished solid plugs are packed in sturdy corrugated cartons to protect the threads during international sea or air freight.

Machines & Equipment

Traub Single Spindle Automats
Advanced CNC Turning Centers
Carbide Threading Tooling
Ultrasonic Cleaning Stations
Electroplating Baths

Quality Control

NPT / BSP L1 Ring Gauges
Digital Micrometers
Plating Thickness (DFT) Meters
Visual Thread Inspection
Material Test Certificates (MTC)

Material Options

Metals for High-Pressure Plugs

Carbon Steel (Chrome/Nickel Plated)

Properties: The industry standard for heavy hydraulics and engine blocks. Solid carbon steel provides immense structural strength, ensuring the plug will not blow out under high pressure or snap when torqued heavily. Plating provides the necessary barrier against rust and coolant degradation.

Best For: Hydraulic manifold blocks, automotive engine blocks, transmission cases, and heavy industrial gearboxes.

Standards:

EN8 / C45 AISI 1018 ASTM A105 equivalent

Free Machining Brass (C360)

Properties: Brass provides excellent natural resistance to water-based corrosion and extreme temperature fluctuations. Being slightly softer than steel, brass threads conform exceptionally well to cast iron female ports, creating a highly reliable, leak-proof seal.

Best For: Automotive radiators, water pumps, HVAC manifolds, and pneumatic air compressor tanks.

Standards:

UNS C36000 BS 2874 CZ121

Applications

Industries Using Solid Pipe Plugs

Automotive Manufacturing

Sealing oil galleys, coolant jackets, and core holes permanently in cast iron and aluminum engine blocks.

Heavy Hydraulics

Providing blowout-proof closures for unused directional ports on high-pressure fluid manifold blocks.

Pneumatic Systems

Sealing air receiver tanks and compressor distribution headers safely against constant vibrational stress.

HVAC & Radiators

Brass plugs used extensively for drain ports and fluid containment in heat exchangers and industrial chillers.

Product Comparison

Solid Machined Plugs vs Hollow Cast Plugs

Feature / Capability	OM Engineering (Solid Machined)	Standard Hollow Cast Plug
Structural Integrity	High Burst Pressure (100% Solid)	Low (Thin walls can blow out under pressure)
Head Durability	Will not snap or round off under heavy torque	Hollow head shears off, leaving threads stuck in port
Thread Sealing	CNC Single-Point Cut (±0.02mm)	Often poorly threaded, requiring excessive tape
Material Quality	Verified Bar Stock with MTC	Porous, cheap cast iron or zinc alloys
Primary Use Case	Engine blocks, 10K PSI Hydraulics	Low-pressure residential plumbing only

Common Questions

Solid Pipe Plugs — FAQs

Many commercial pipe plugs are hollowed out (cored) from the bottom to save weight and material cost. While fine for household water lines, in heavy industrial applications, the thin walls of a hollow plug can collapse when wrenched tightly, or the head can snap completely off, leaving the threaded ring stuck inside your expensive engine block. A Solid Plug machined from bar stock eliminates these failure points entirely.

Both are excellent for applying high torque. Square heads are traditional and offer four large, flat surfaces that are very difficult to round off with an adjustable wrench. Hex heads allow for the use of standard socket sets and closed-end wrenches, making them ideal for assembly lines or tight clearances where wrench swing is limited.

Yes. NPT (National Pipe Taper) threads are designed to wedge together to form a mechanical seal. However, to fill the microscopic spiral clearance between the thread roots and crests, you must use a high-quality thread sealant paste or PTFE tape. This also lubricates the threads, allowing you to torque the plug deeper into the port for a tighter seal.

Steel is preferred for high-pressure hydraulics due to its raw strength. However, Brass is the superior choice for cooling systems, radiators, and water lines. Brass will not rust, and because it is slightly softer than cast iron or steel, the brass threads conform beautifully to the female port when tightened, creating an exceptional fluid seal.

Absolutely. Leveraging our infrastructure in Mumbai, we utilize high-speed Traub automats to manufacture massive volumes of pipe plugs for engine and machinery OEMs. We provide scalable manufacturing, rigorous QA, and all necessary export documentation, including MTCs.

Related Capabilities

Explore Our Precision Manufacturing Services

High-Volume Traub Machining

Learn more about our automated Traub machining capabilities for rapidly producing thousands of solid plugs and fasteners with highly repeatable accuracy.

Precision Turned Components

Explore our full range of CNC turned steel, brass, and stainless parts engineered for heavy-duty industrial OEM applications.

Industrial Pipe Adapters

From reducing nipples to JIC flare adapters, explore our complete catalog of high-pressure fluid control hardware.

Need High-Volume Solid Pipe Plugs?

Share your thread sizes (NPT/BSP), material preferences, and batch requirements for a rapid B2B quote. We guarantee blowout-proof solid bar construction and ±0.02mm tolerances. Mumbai-based manufacturing, globally exported to automotive and hydraulic OEMs.
